Heated Oxygen Sensor (HO2S) - 3.5L GTDI: Installation

RH sensor

• 1.

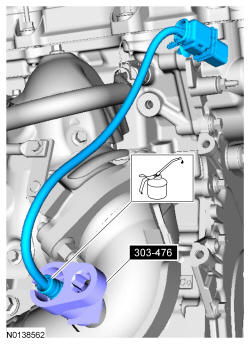

  Material: High Temperature Nickel Anti-Seize Lubricant SL-2.

  Special Tool(s): Socket, Exhaust Gas Oxygen Sensor 303-476 (T94P-9472-A).

  • Calculate the correct torque wrench setting for the following torque. Refer to Fig 1

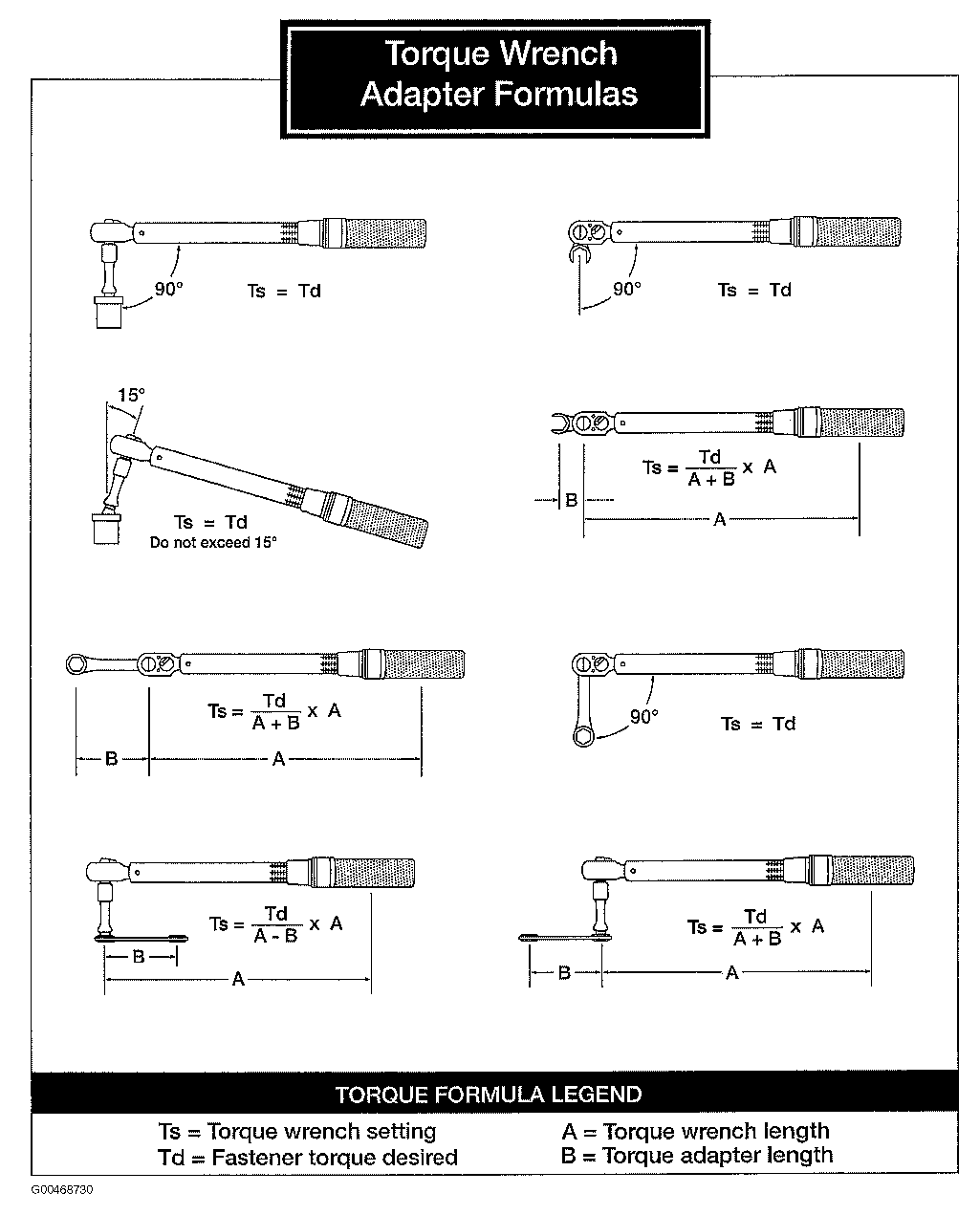

    Fig 1: Torque Wrench Adapter Formulas

    Courtesy of FORD MOTOR CO.
  • Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

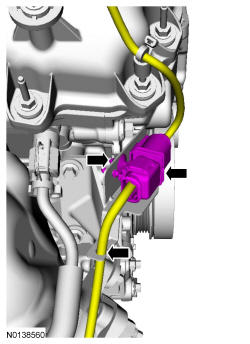

• 2.



Courtesy of FORD MOTOR COMPANY

LH sensor

• 3.

  High Temperature Nickel Anti-Seize Lubricant XL-2.

  Special Tool(s): Socket, Exhaust Gas Oxygen Sensor 303-476 (T94P-9472-A).

  • Calculate the correct torque wrench setting for the following torque. Refer to Fig 2
    Fig 2: Torque Wrench Adapter Formulas

    Courtesy of FORD MOTOR CO.
  • Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

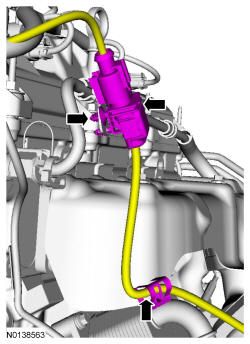

• 4.



Courtesy of FORD MOTOR COMPANY
