Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View, 3.5L Ti-VCT
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

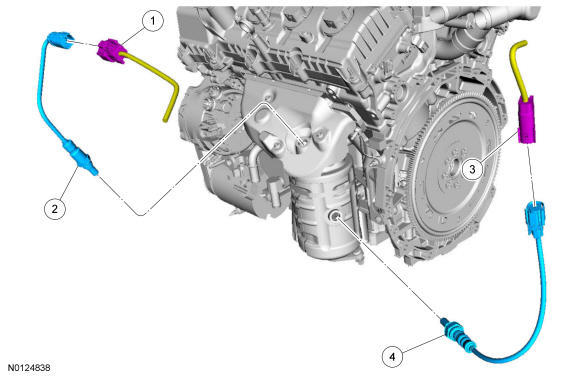

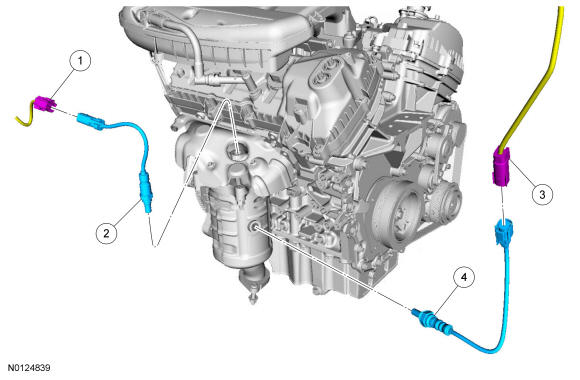

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | HO2S electrical connector (part of 12A581) | - | - | - |
| 2 | 9F472 | HO2S | - | High Temperature Nickel Anti-Seize Lubricant Penetrating and Lock Lubricant (US); Penetrating Fluid (Canada) | - |
| 3 | - | CMS electrical connector (part of 12A581) | - | - | - |
| 4 | 9G444 | CMS | - | High Temperature Nickel Anti-Seize Lubricant Penetrating and Lock Lubricant (US); Penetrating Fluid (Canada) | - |
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | HO2S electrical connector (part of 12A581) | - | - | - |
| 2 | 9F472 | HO2S | - | High Temperature Nickel Anti-Seize Lubricant Penetrating and Lock Lubricant (US); Penetrating Fluid (Canada) | - |
| 3 | - | CMS electrical connector (part of 12A581) | - | - | - |
| 4 | 9G444 | CMS | - | High Temperature Nickel Anti-Seize Lubricant Penetrating and Lock Lubricant (US); Penetrating Fluid (Canada) | - |
WARNING:
Before beginning any service procedure in this service information, refer to SAFETY WARNINGS
