Powertrain Control Module (PCM) - 3.5L GTDI: Installation

1.

Tighten to 8 Nm (71 lb-in)

GFD38123

Courtesy of FORD MOTOR COMPANY

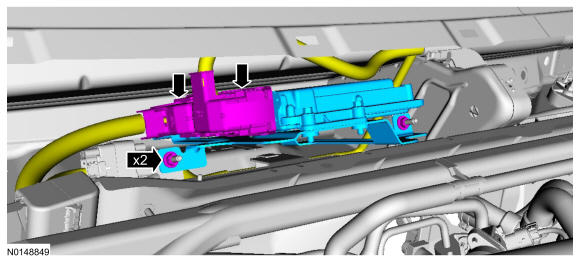

2.

Tighten to 8 Nm (71 lb-in).

GFD38122

Courtesy of FORD MOTOR COMPANY

3.

Install the cowl panel. REFER to Front End Body Panels .

4.

NOTE: This step is only necessary if installing a new component.

Restore the module configuration. Carry out the module configuration restore steps of the PMI procedure. REFER to Module Configuration .

Special Tool(s): Scan Tool.

5.

Reprogram the PATS. Carry out the Parameter Reset procedure. Vehicles without IA, REFER to Passive Anti-Theft System (PATS), Without Intelligent Access (IA) . Vehicles with IA, REFER to Passive Anti-Theft System (PATS), With Intelligent Access (IA) .

6.

After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
