Fuel Charging and Controls - 3.5L Ti-VCT
Component Location
3.5L Ti-VCT

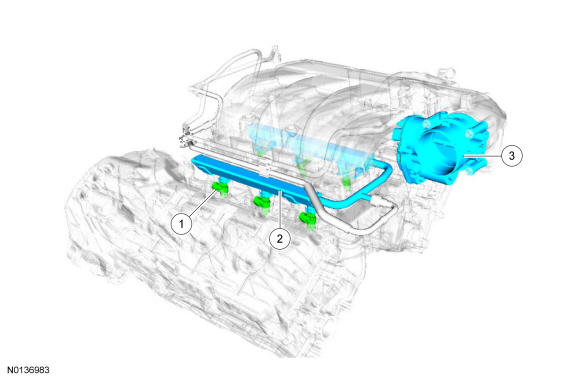

| Item | Part Number | Description |
|---|---|---|
| 1 | 9F593 | Fuel injector |
| 2 | 9D280 | Fuel rail |
| 3 | 9E926 | TB |

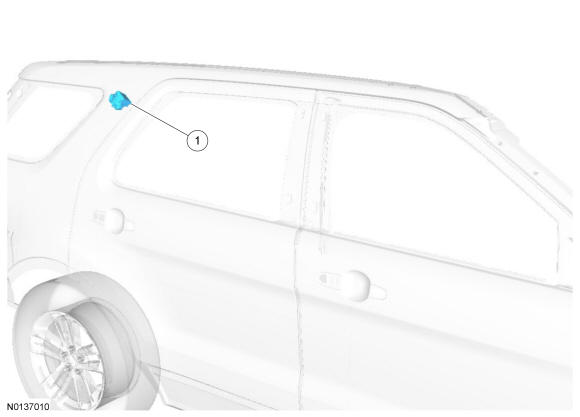

| Item | Part Number | Description |
|---|---|---|
| 1 | 9D370 | FPCM |
System Operation - Refer to the ENGINE CONTROLS - DESCRIPTION & OPERATION (EXCEPT DIESEL & HYBRID)
Refer to the ENGINE CONTROLS - DESCRIPTION & OPERATION (EXCEPT DIESEL & HYBRID) .
Component Description - Refer to the ENGINE CONTROLS - DESCRIPTION & OPERATION (EXCEPT DIESEL & HYBRID)
Refer to the ENGINE CONTROLS - DESCRIPTION & OPERATION (EXCEPT DIESEL & HYBRID) .
