Fuel Pump Control Module: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

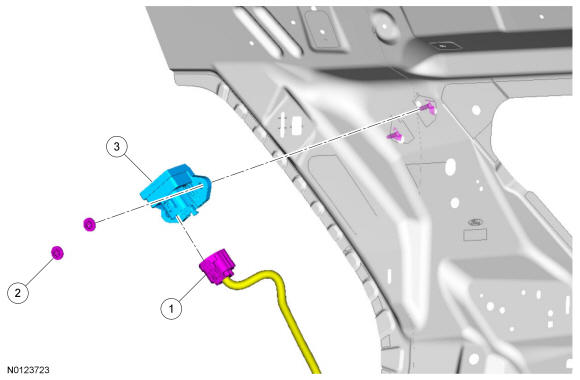

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | FP control module electrical connector (part of 14A005) | - | - | - |
| 2 | W701014 | FP control module retaining nut (2 required) | 6 Nm (53 lb-in) | - | - |
| 3 | 9D370 | FP control module | - | - | - |
