Throttle Body: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

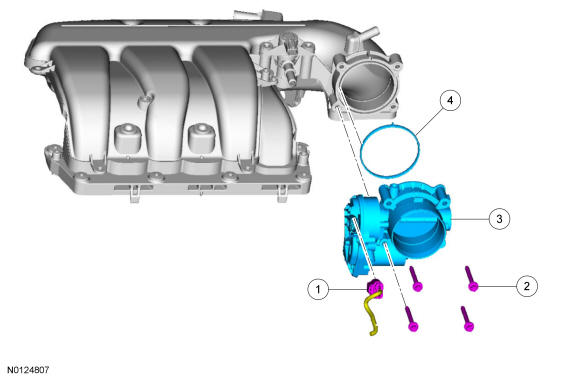

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | TB electrical connector (part of 12C581) | - | - | - |
| 2 | W713443 | TB bolt (4 required) | 10 Nm (89 lb-in) | - | - |
| 3 | 9E926 | TB | - | - | - |
| 4 | 9E936 | TB gasket (part of 9424) | - | - | - |
