Window Regulator and Motor - Front Door: Removal

1. 1.

   Remove the door speaker. REFER to Information and Entertainment Systems Premium .

1. 2.

   Position aside the water shield.

1. 3.

   Install the window control switch and position the door window glass to access the door window glass bolts.

1. 4.

   Remove the 2 door window glass bolts.
   • To install, tighten to 8 Nm (71 lb-in).

Courtesy of FORD MOTOR COMPANY

1. 5.

   Tape the window glass in the full UP position.

1. 6.

   Disconnect the window motor electrical connector.

1. 7.

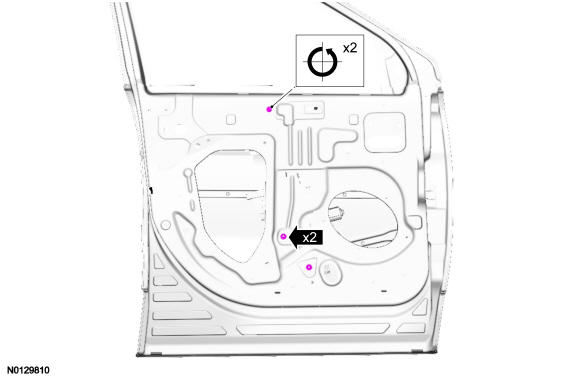

   Remove the window regulator in the following sequence:
   • Loosen the top window regulator bolt.
     • To install, tighten to 10.5 Nm (93 lb-in).
   • Remove the 2 window regulator nuts.
     • To install, tighten to 10.5 Nm (93 lb-in).
   • Remove the window regulator.

Courtesy of FORD MOTOR COMPANY
