Accessory Protocol Interface Module (APIM): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

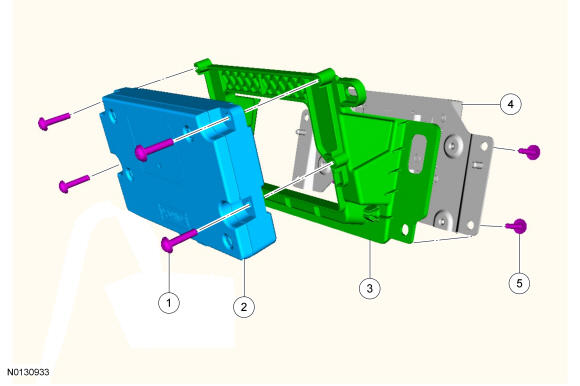

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | APIM screws (4 required) | 0.6 Nm (5 lb-in) | - | - |
| 2 | 14D212 | APIM | - | - | - |
| 3 | 14A301 | APIM bracket | - | - | - |
| 4 | 10D885 | FCDIM | - | - | - |
| 5 | W707628 | FCDIM screws (4 required) | 2 Nm (18 lb-in) | - | - |
