Front Controls Interface Module (FCIM): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

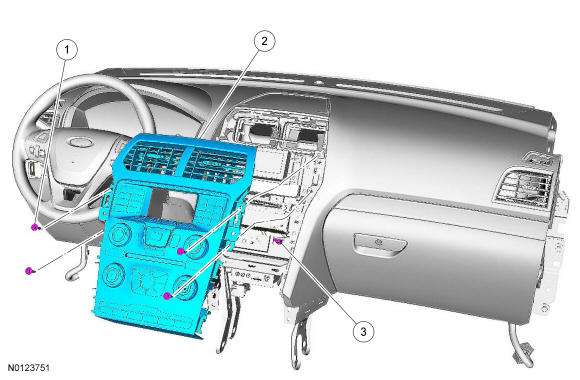

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W707628 | FCIM screws (4 required) | 2 Nm (18 lb-in) | - | - |
| 2 | 18842 | FCIM | - | - | - |
| 3 | - | FCIM electrical connector (part of 14401) | - | - | - |
