Electronic Engine Controls System - 2.0L GTDI

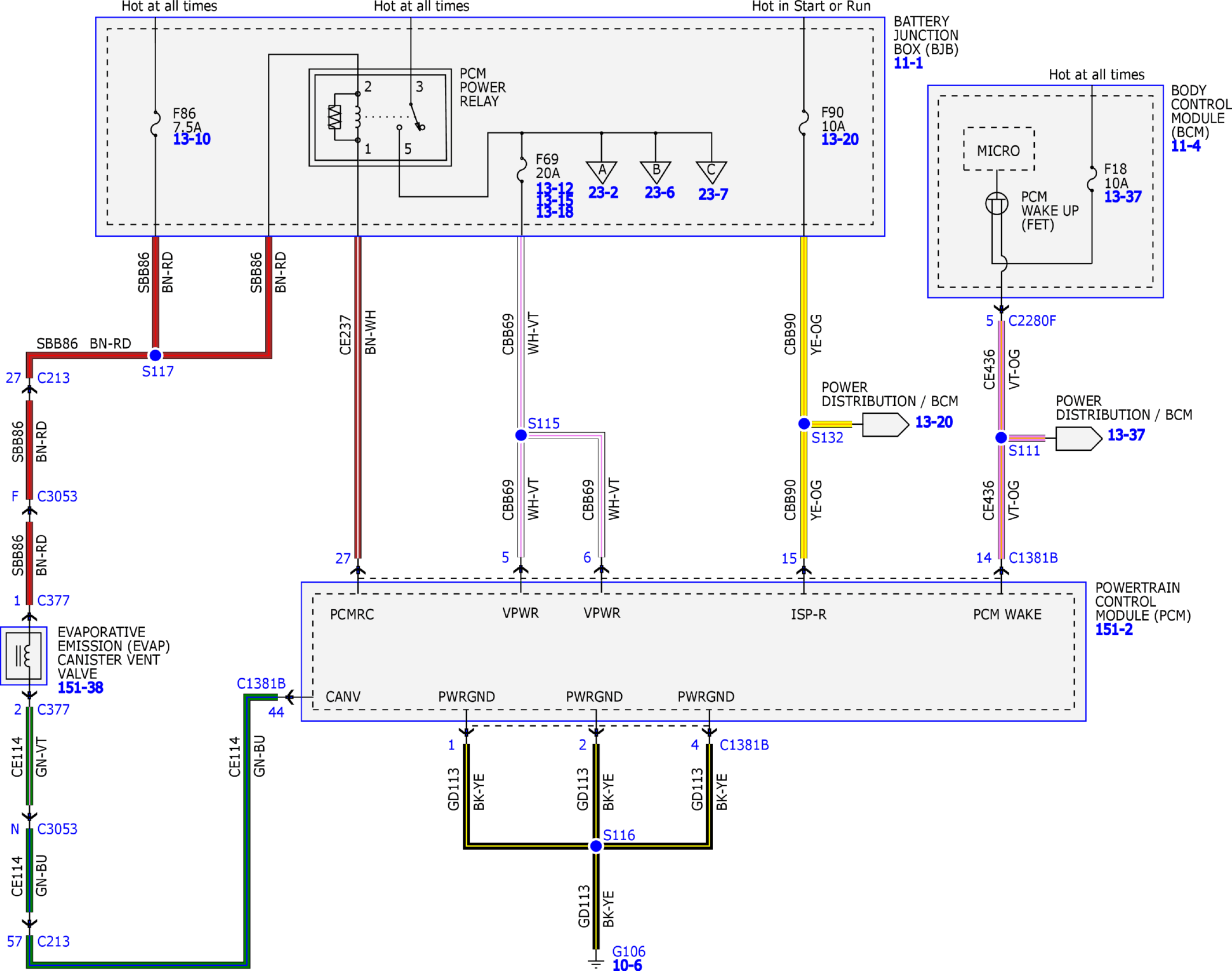

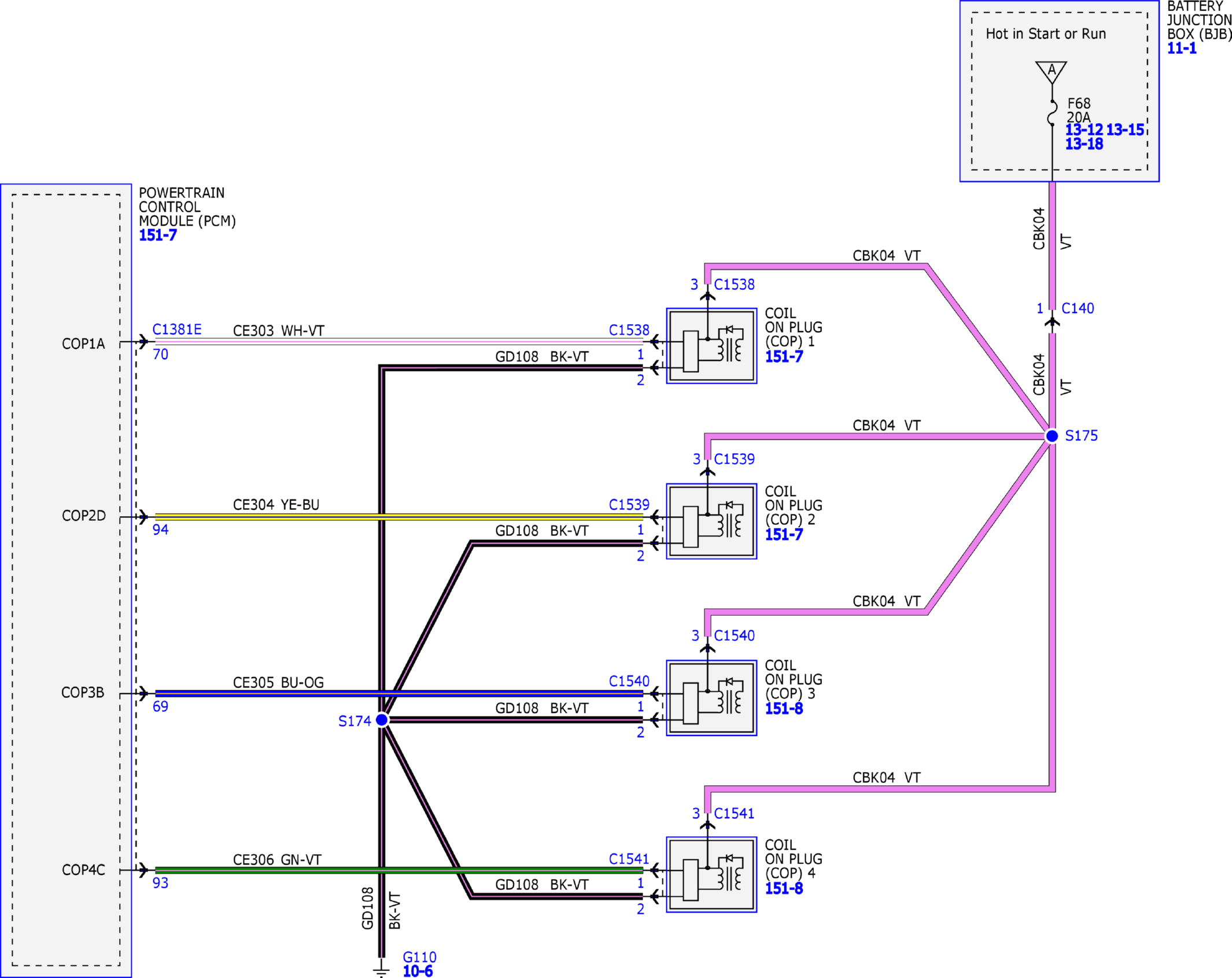

Fig 1: Electronic Engine Controls System (2.0L GTDI) Wiring Diagrams (1 Of 11)

Courtesy of FORD MOTOR COMPANY

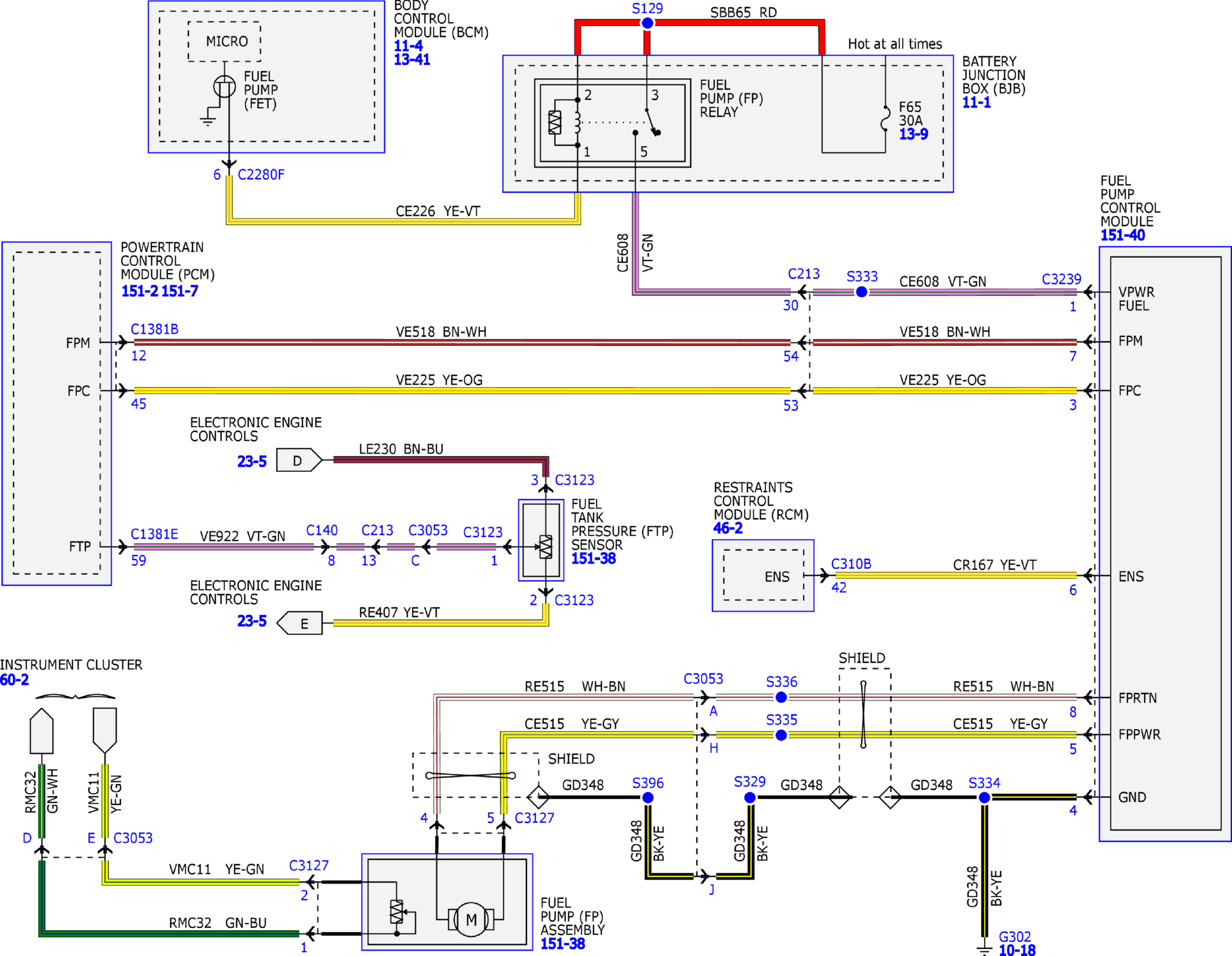

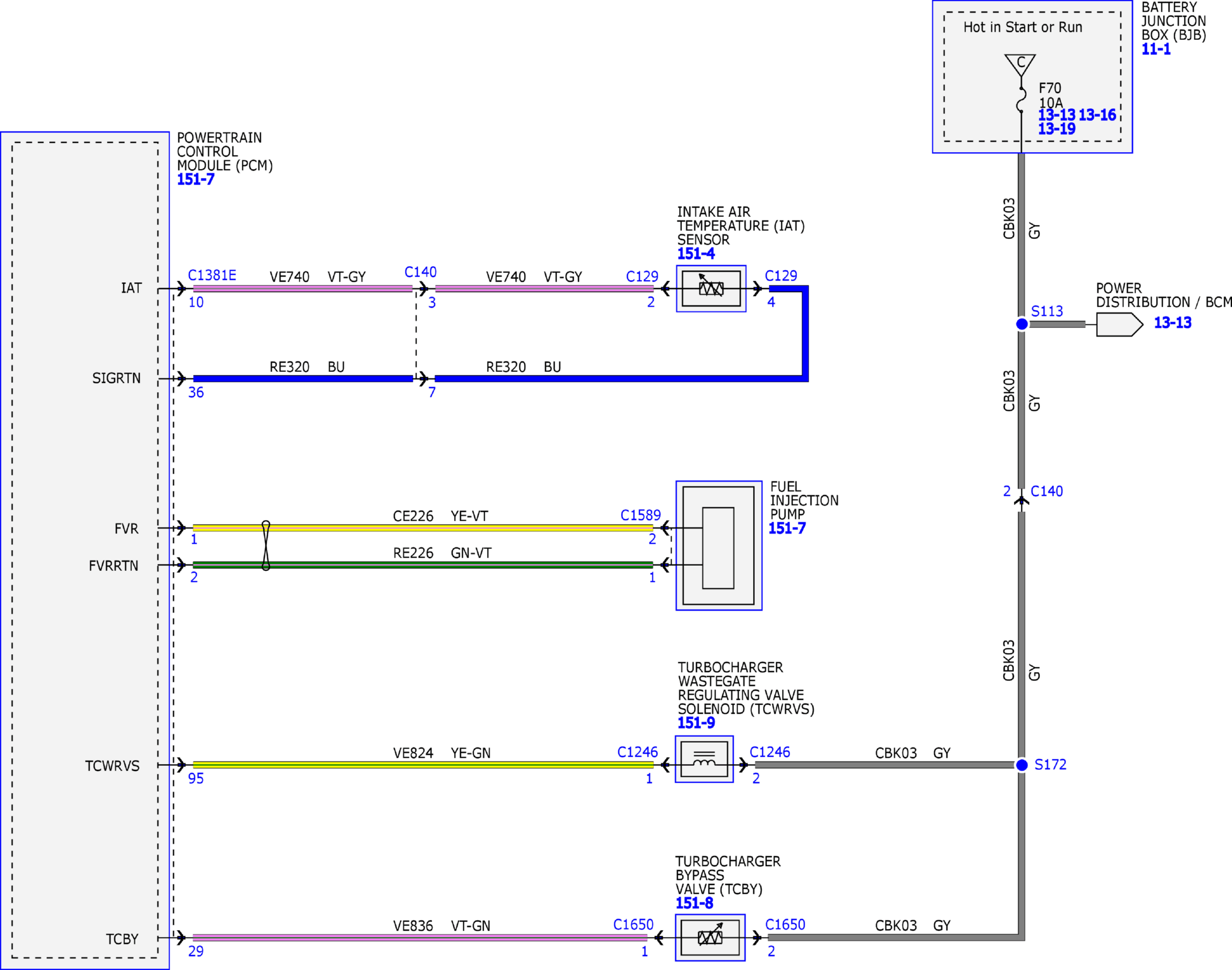

Fig 2: Electronic Engine Controls System (2.0L GTDI) Wiring Diagrams (2 Of 11)

Courtesy of FORD MOTOR COMPANY

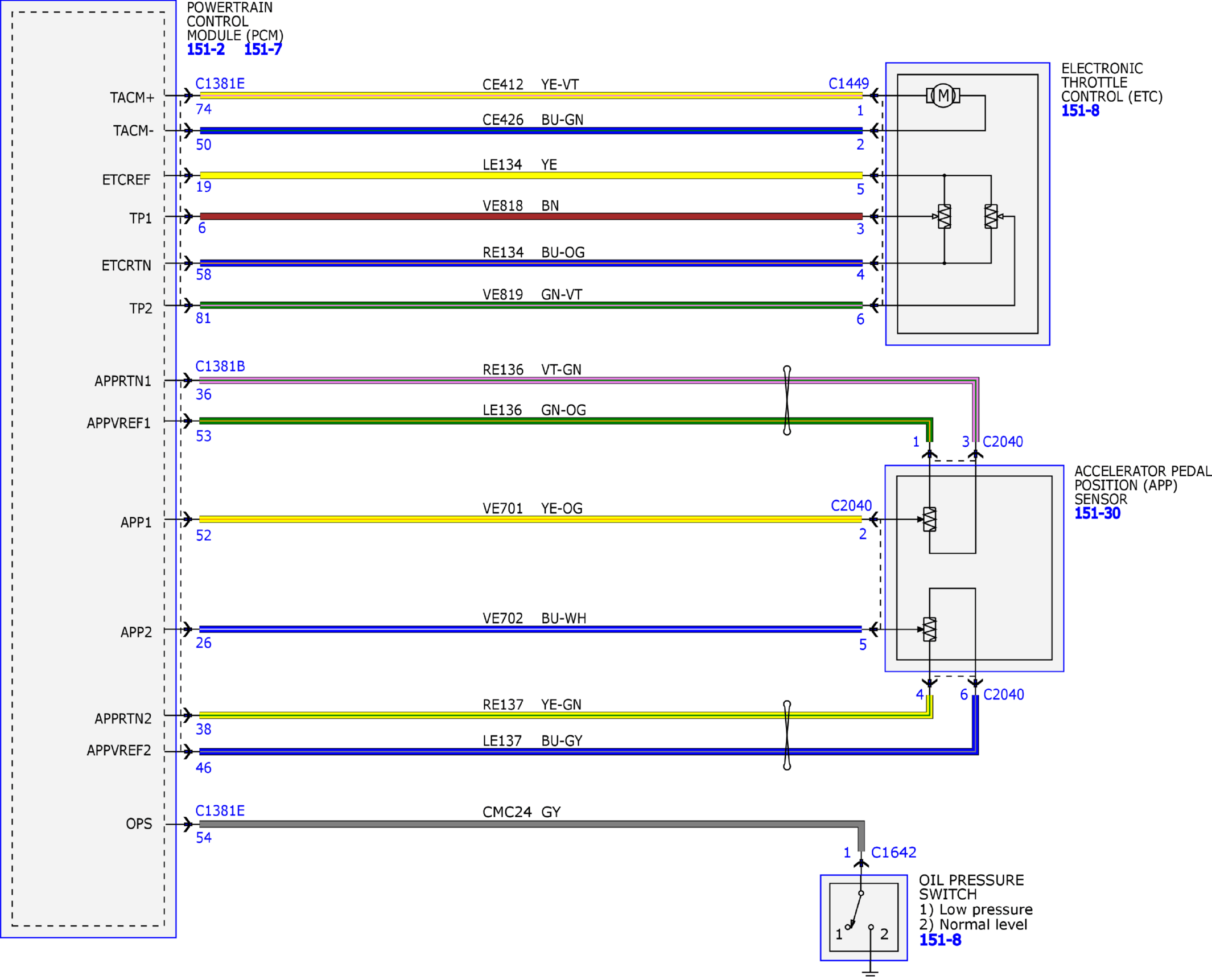

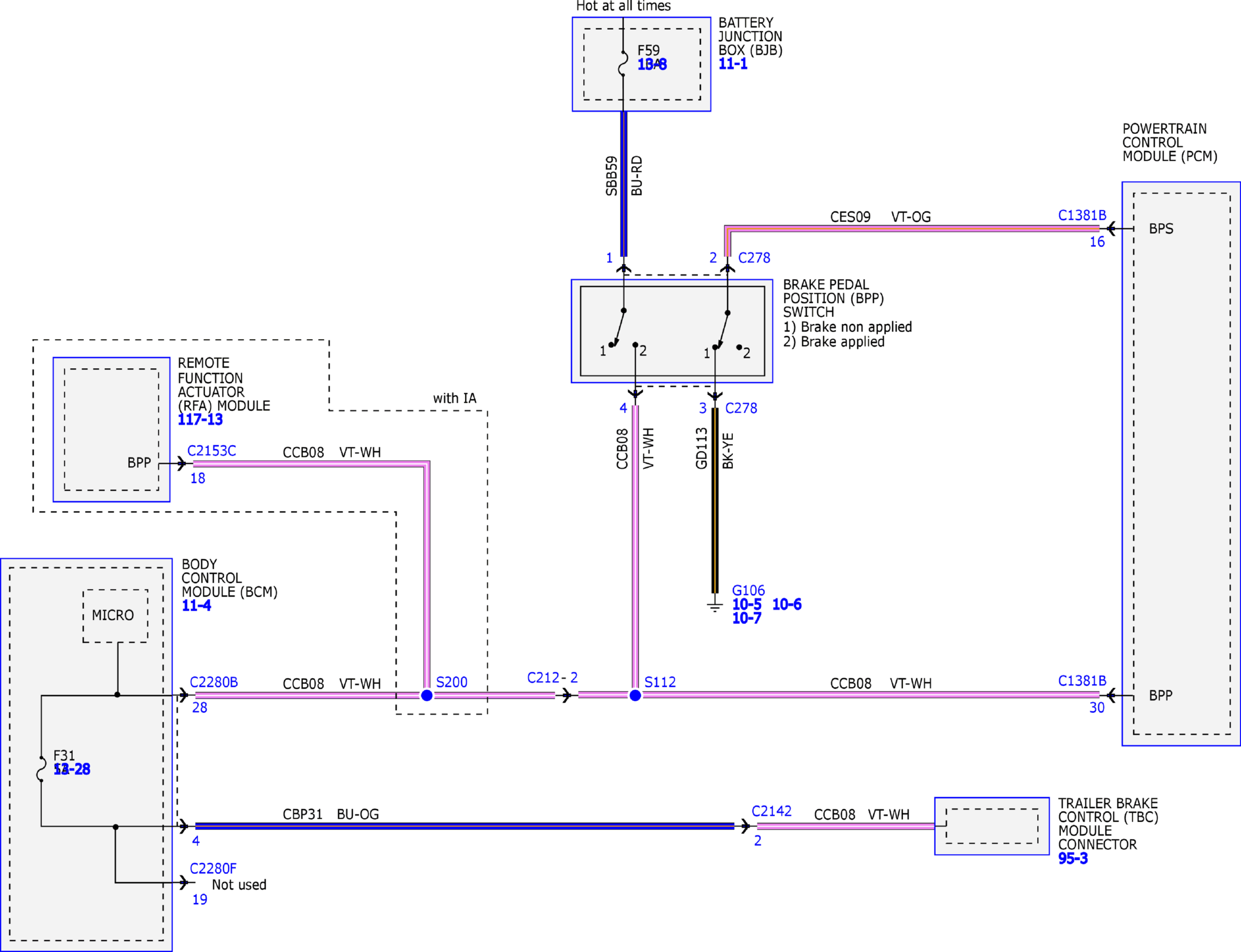

Fig 3: Electronic Engine Controls System (2.0L GTDI) Wiring Diagrams (3 Of 11)

Courtesy of FORD MOTOR COMPANY

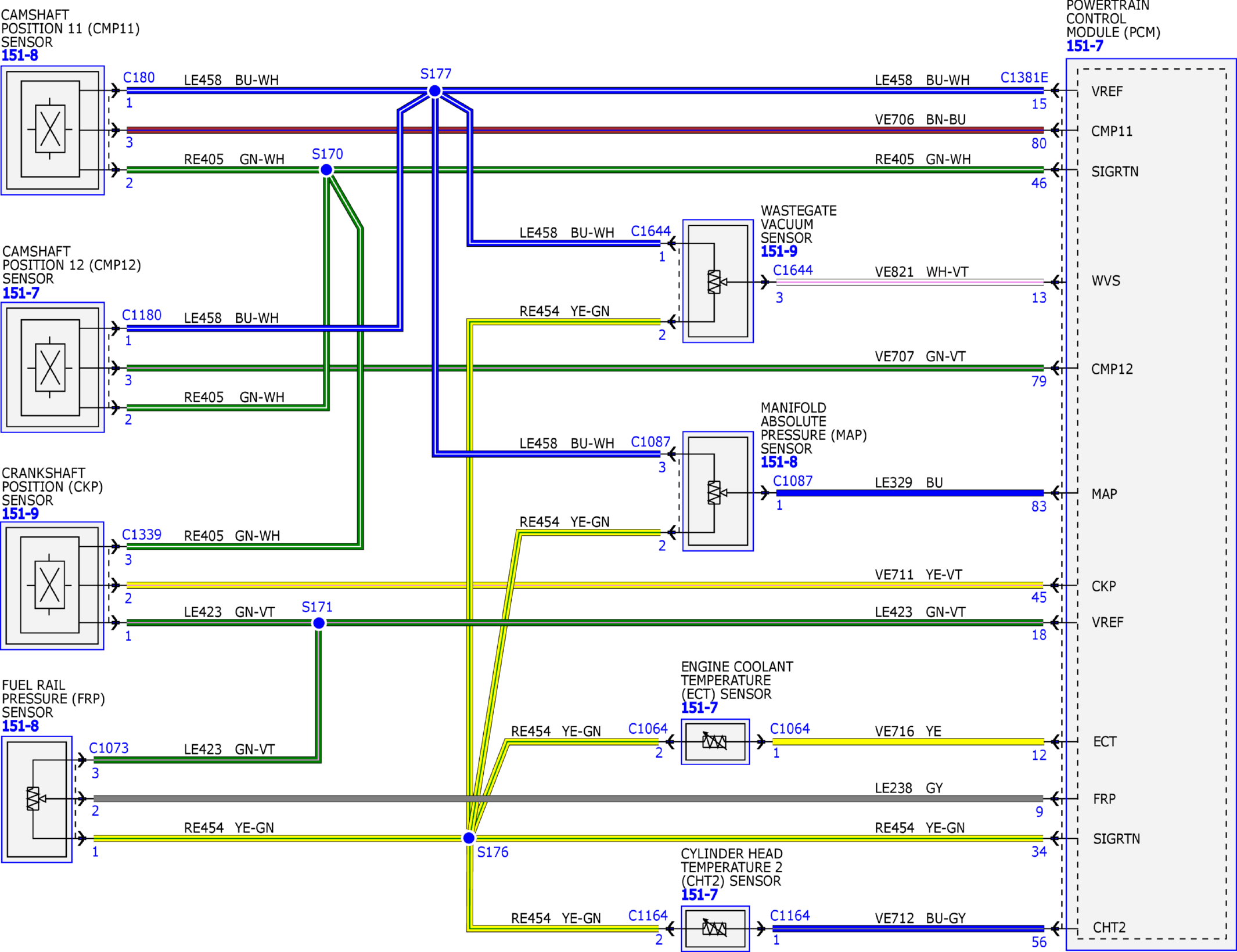

Fig 4: Electronic Engine Controls System (2.0L GTDI) Wiring Diagrams (4 Of 11)

Courtesy of FORD MOTOR COMPANY

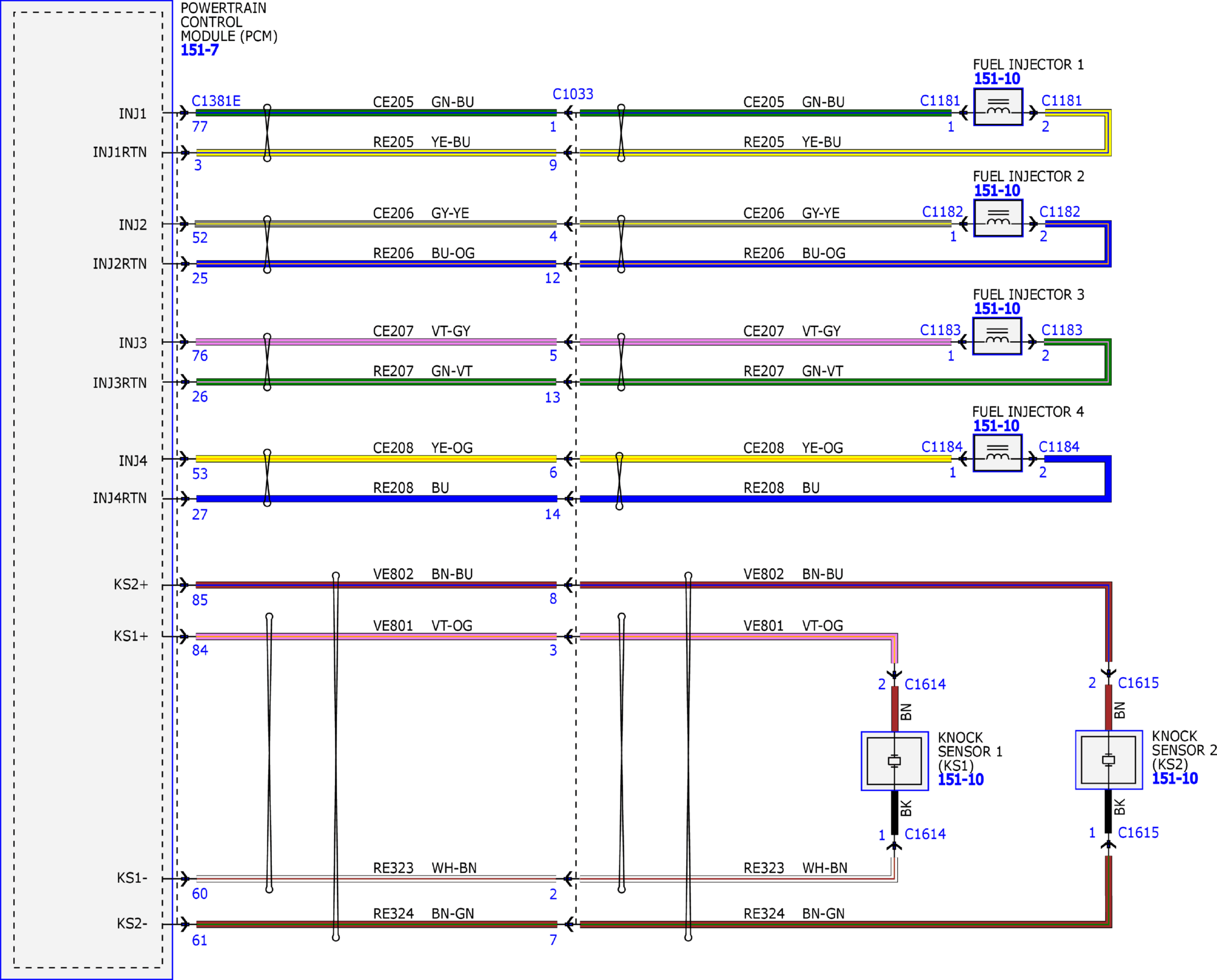

Fig 5: Electronic Engine Controls System (2.0L GTDI) Wiring Diagrams (5 Of 11)

Courtesy of FORD MOTOR COMPANY

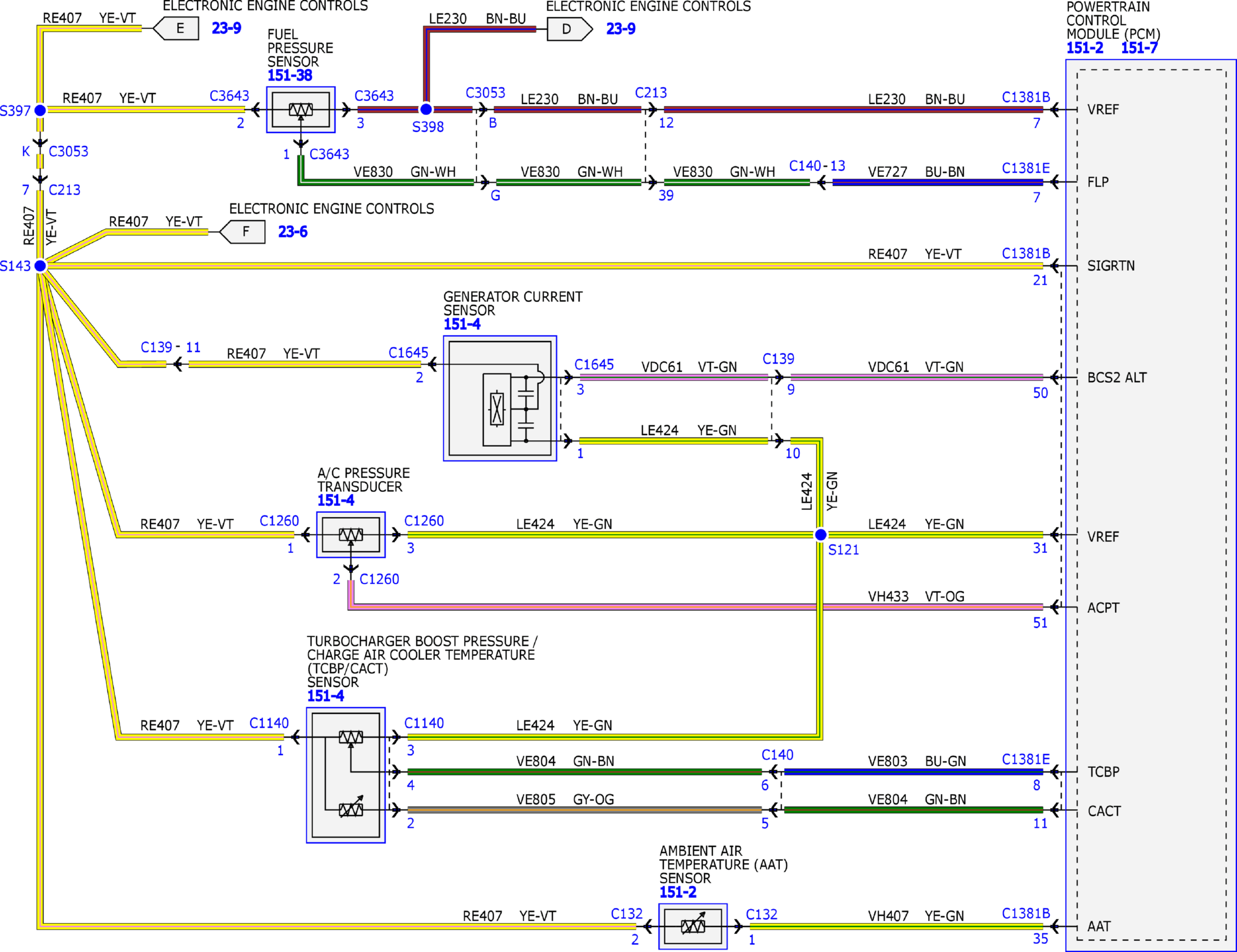

Fig 6: Electronic Engine Controls System (2.0L GTDI) Wiring Diagrams (6 Of 11)

Courtesy of FORD MOTOR COMPANY

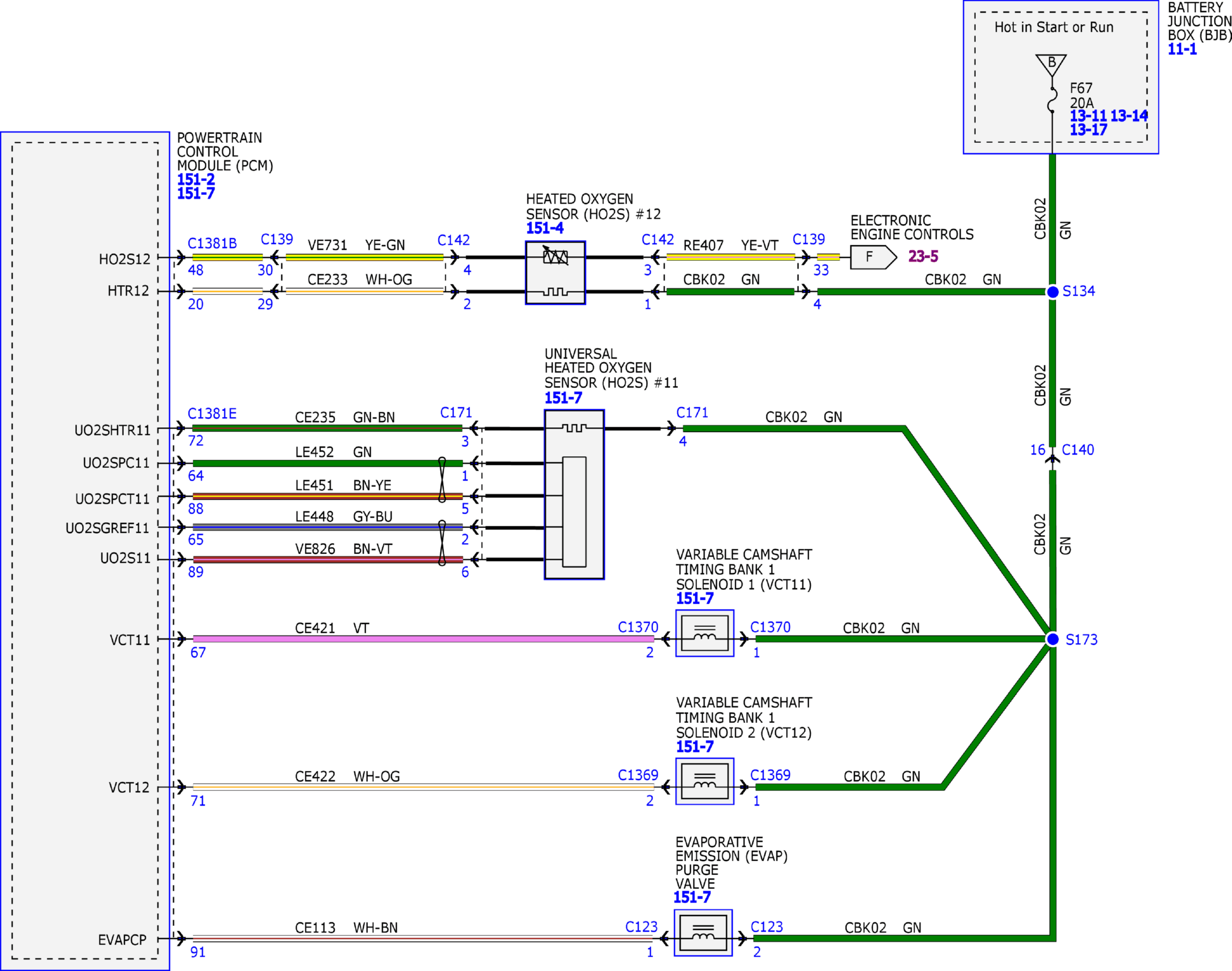

Fig 7: Electronic Engine Controls System (2.0L GTDI) Wiring Diagrams (7 Of 11)

Courtesy of FORD MOTOR COMPANY

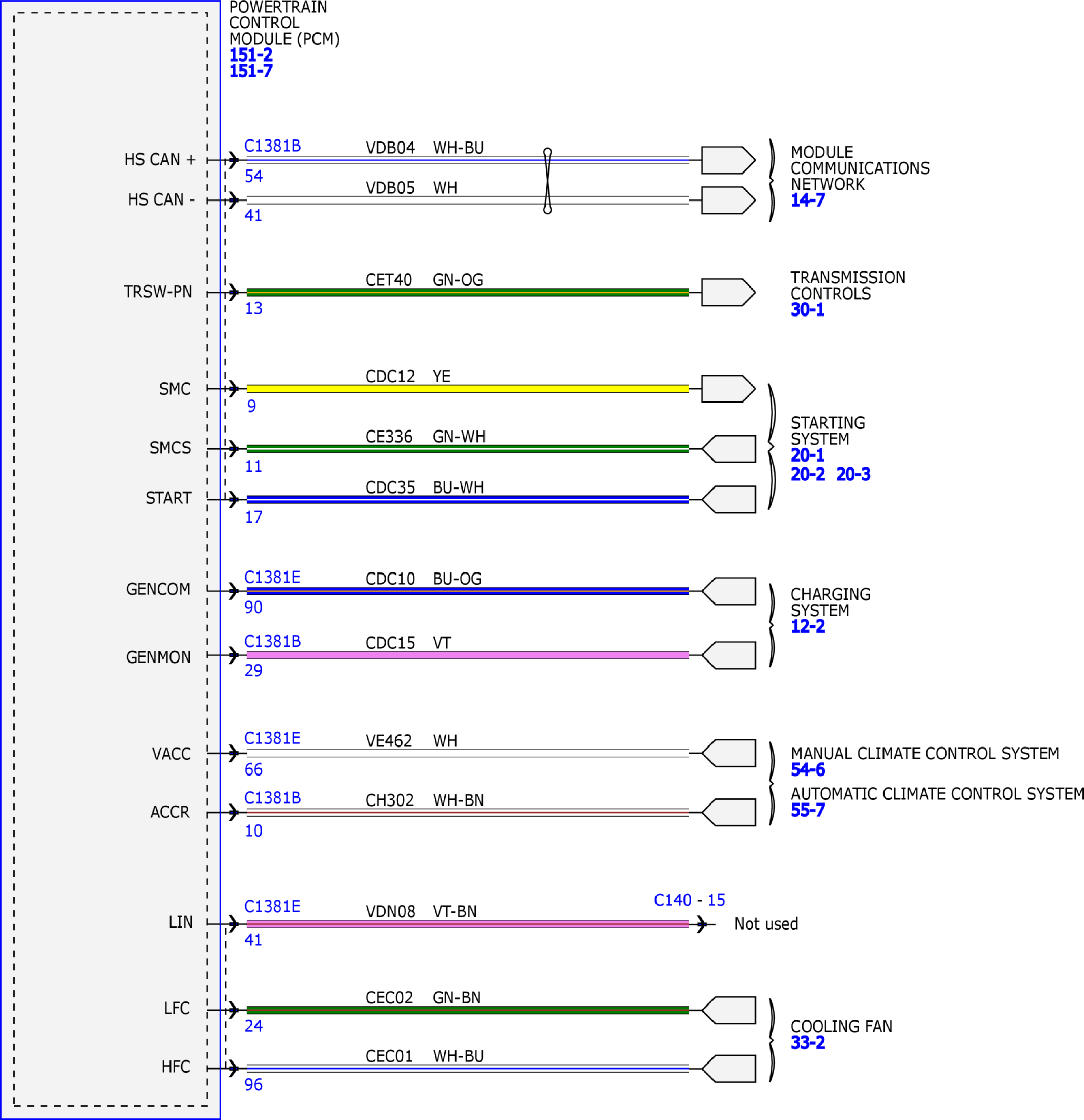

Fig 8: Electronic Engine Controls System (2.0L GTDI) Wiring Diagrams (8 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls System (2.0L GTDI) Wiring Diagrams (9 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls System (2.0L GTDI) Wiring Diagrams (10 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls System (2.0L GTDI) Wiring Diagrams (11 Of 11)

Courtesy of FORD MOTOR COMPANY
