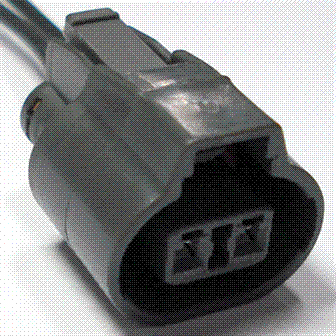

Connector End View (C489) - CARGO LAMP
Connector: C489
Description
CARGO LAMP
Color
none
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VLN33 (GY-VT) |
20 |
CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) |
|
|
2 |
GD233 (BK) |
20 |
GROUND - COWL SIDE/PILLAR A LEFT |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1077 |
Service Part Number: 3U2Z-14S411-FDB Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Lamp - Courtesy - Door Lamp - Roof Marker Lamp - Side Marker Lamp - Storage Compartment - Cargo Lamp - Storage Compartment - Trunk Switch - Cargo Lamp |
