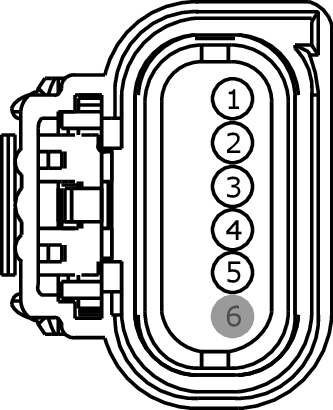

Connector End View (C4369) - SIDE OBSTACLE DETECTION CONTROL MODULE) - LEFT (SOD-L)
Connector: C4369
Description
SIDE OBSTACLE DETECTION CONTROL MODULE - LEFT (SOD-L)
Color
BK
Harness
14F238
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CRB04 (YE-GN) |
20 |
SENSOR - BLINDSPOT WARNING LEFT HAND # WARNING ALERT |
|
|
2 |
CBP34 (VT-BN) |
20 |
FUSE - 34 OR CIRCUIT BREAKER |
|
|
3 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
4 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
5 |
GD351 (BK-GN) |
20 |
GROUND - PILLAR D RIGHT |
|
|
6 |
* |
* |
Not Used |
