Connector End View (C1073) - FUEL RAIL PRESSURE (FRP) SENSOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

RE454 (YE-GN)

18

CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)

2.0L GTDI

2

LE238 (GY)

20

CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE (FRP) SENSOR

2.0L GTDI

3

LE423 (GN-VT)

20

CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)

2.0L GTDI

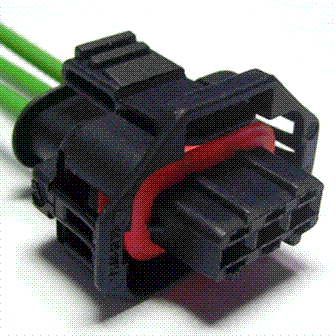

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1099

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BBA

Gauge:

14

Pin material:

Silver

Cavities:

3

Vehicle Uses

Fuel Injector

Pump - Fuel Injection

Sensor - Manifold Absolute Pressure (MAP)

Solenoid - Fuel Volume Regulator Control
