Connector End View (C1717) - TRANSMISSION FLUID PUMP
Connector: C1717
Description
TRANSMISSION FLUID PUMP
Color
none
Harness
14B060
Base Part #
14A464
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CYT14 (VT-OG) |
16 |
#N/A |
|
|
2 |
CYT14 (VT-OG) |
16 |
#N/A |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
GD123 (BK-GY) |
16 |
#N/A |
|

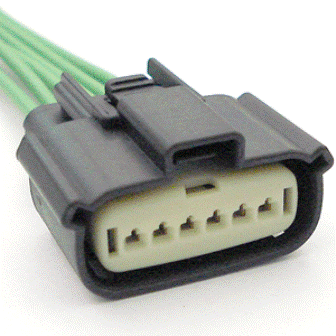

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-944 |
Service Part Number: 9U2Z-14S411-NA Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses Connector - Inline |
