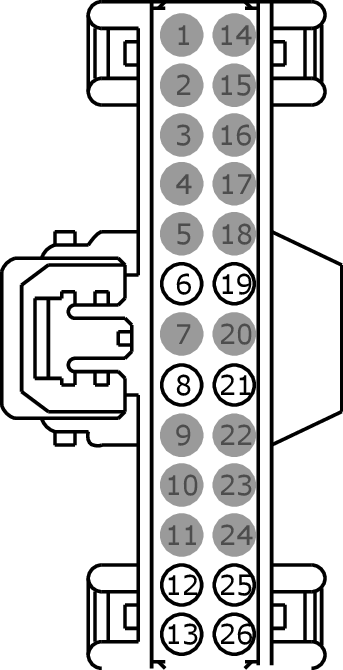

Connector End View (C240B) - AUDIO CONTROL MODULE (ACM)
Connector: C240B
Description
AUDIO CONTROL MODULE (ACM)
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
VME90 (GY-BU) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
VME80 (VT) |
26 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
VME52 (BU) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT |
|
|
13 |
VME53 (VT) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
* |
* |
Not Used |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
VME91 (WH-BN) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
RME80 (BU) |
26 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
RME52 (GY) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT |
|
|
26 |
RME53 (BN) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT |
