Removal And Installation: Ballast: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

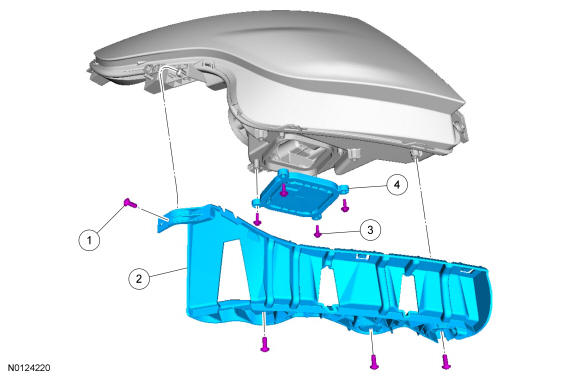

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Front bumper cover support bolt (4 required part of 17C972 / 17C973) |
| 2 | 17C972 / 17C973 | Front bumper cover support (Right Hand (RH) / Left Hand (LH)) |
| 3 | W715133 | Ballast bolt (4 required) |
| 4 | 13C170 | Ballast assembly |
