Front Lighting Control Module (FLM): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

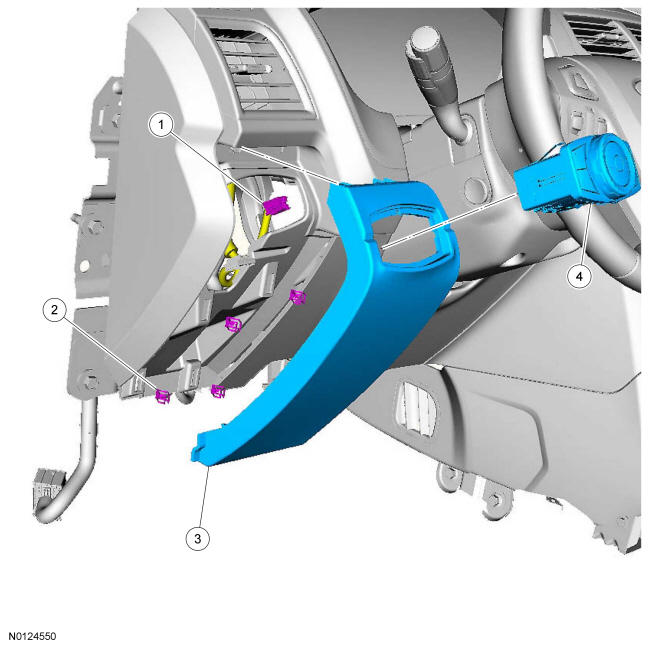

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Front Lighting Control Module (FLM) electrical connector (part of 14401) | - | - | - |
| 2 | - | Lower Left Hand (LH) instrument panel trim panel clip (4 required part of 04338) | - | - | - |
| 3 | 04338 | Lower Left Hand (LH) instrument panel trim panel | - | - | - |
| 4 | 11654 | Front Lighting Control Module (FLM) | - | - | - |
