Front Lighting Control Module (FLM): Removal

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in SERVICE INFORMATION .

  1. 1.

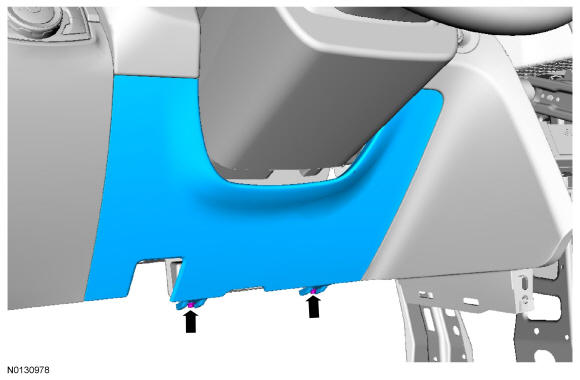

    Remove the 2 screws and the steering column cover trim panel.
GFD37142Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the lower Left Hand (LH) instrument panel trim panel.

  1. 3.

    Disconnect and remove the Front Lighting Control Module (FLM) from the lower Left Hand (LH) instrument panel trim panel.
