Headlamp Bulb: Removal

All Vehicles

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in SERVICE INFORMATION .

WARNING: The bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.

NOTE: The headlamp bulb should not be removed from the headlamp until just before a new bulb is installed. Removing the bulb for an extended period of time may affect headlamp bulb performance. Contaminants may enter the headlamp where they can settle on the lens and reflector. Never turn on the headlamps with the bulb removed.

1.

Make sure the headlamp switch and ignition switch are in the OFF position.

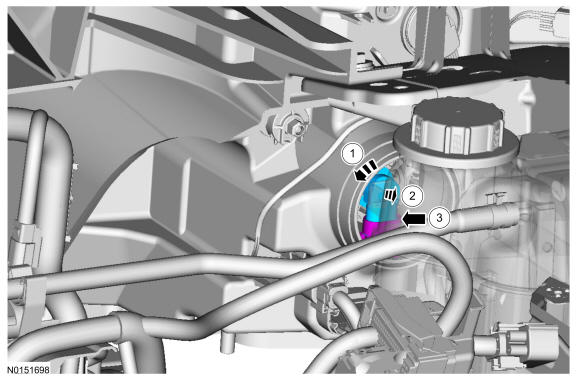

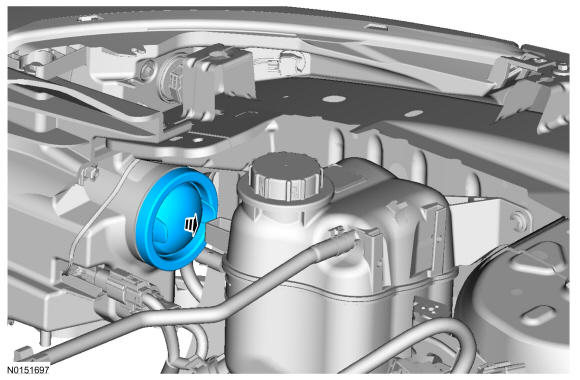

Vehicles with Halogen Headlamps
