Removal And Installation

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in SERVICE INFORMATION

LH turn signal lamp bulb

  1. 1.

    Refer to Headlamp Assembly

  1. 2.

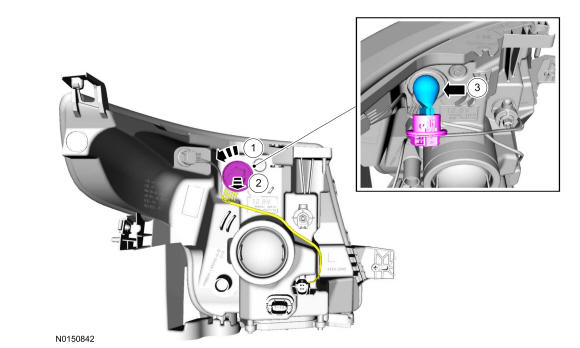

GFD37155Courtesy of FORD MOTOR COMPANY

RH turn signal lamp bulb

  1. 3.

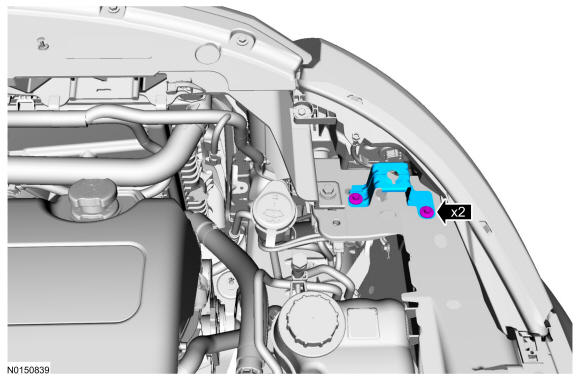

GFD37156Courtesy of FORD MOTOR COMPANY

  1. 4.

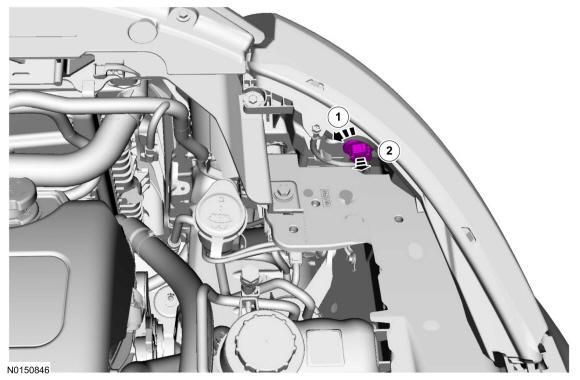

GFD37157Courtesy of FORD MOTOR COMPANY

  1. 5.

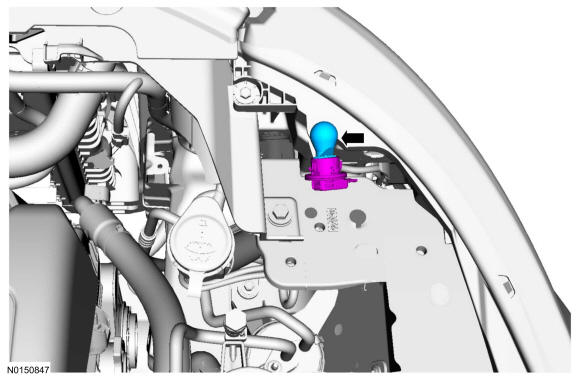

GFD37158Courtesy of FORD MOTOR COMPANY

Side Marker Lamp Bulb

  1. 6.

    For side marker lamp bulb replacement procedure, refer to the Owner's Literature.

Installation

  1. 1.

    To install, reverse the removal procedure.
