Console - Front, Floor: Removal

WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS

1.

Apply the parking brake.

2.

Place the selector lever to the full rearward position.

3.

Position the front seats fully rearward and fully reclined.

4.

Remove the LH and the RH front floor console side trim panels.
1. 1.

  Pull outward to release the retainers.

GFD37082

Courtesy of FORD MOTOR COMPANY

5.

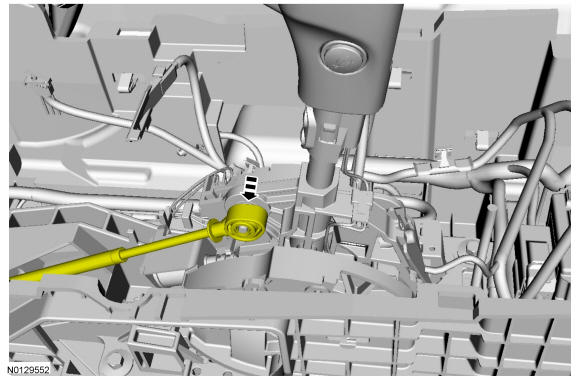

Disconnect the shifter cable from the selector lever.

GFD37628

Courtesy of FORD MOTOR COMPANY

6.

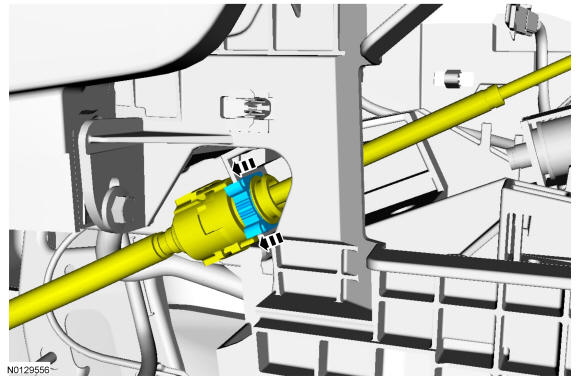

Disconnect the shifter cable from the front floor console bracket.

GFD36607

Courtesy of FORD MOTOR COMPANY

7.

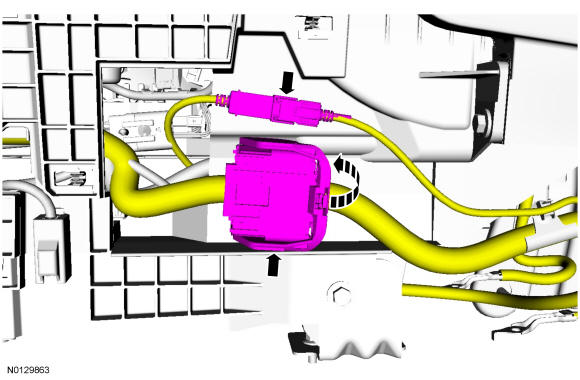

Disconnect the front floor console bulkhead electrical connector, the USB cable and if equipped, the 110V power outlet connector from the side of the console.

GFD37629

Courtesy of FORD MOTOR COMPANY

8.

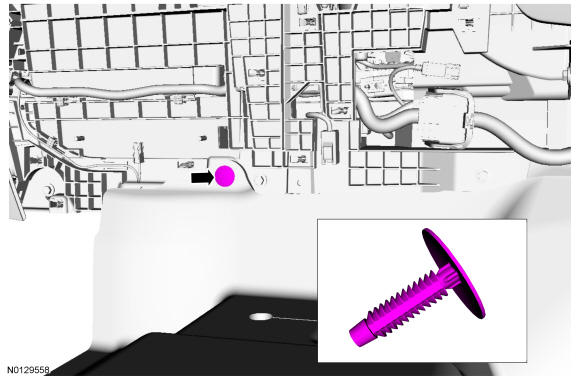

Detach the LH and the Right Hand (RH) carpet push pins from the front floor console.

GFD37630

Courtesy of FORD MOTOR COMPANY

9.

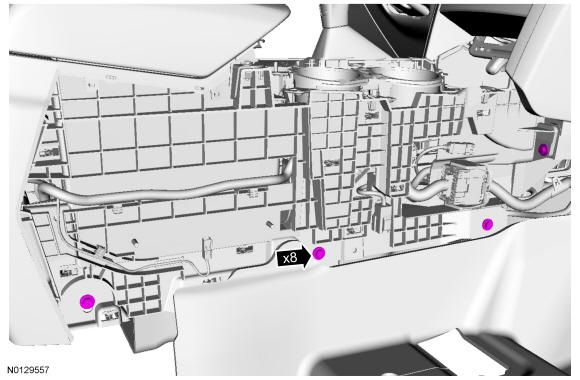

Remove the 8 console bolts.
1. 1.

  To install, tighten to 5.4 Nm (48 lb-in).

GFD37631

Courtesy of FORD MOTOR COMPANY

10.

Remove the floor console.

11.

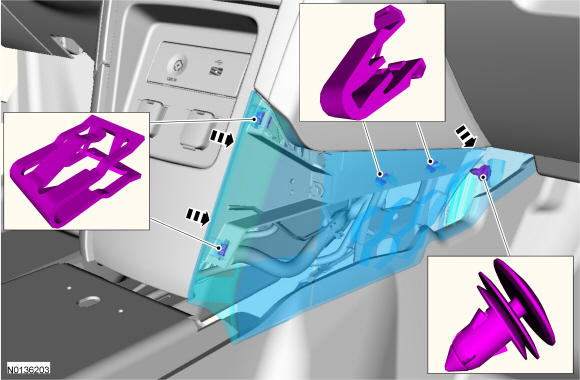

Police vehicles only. Remove the lower instrument panel side panels.

GFD37088

Courtesy of FORD MOTOR COMPANY

12.

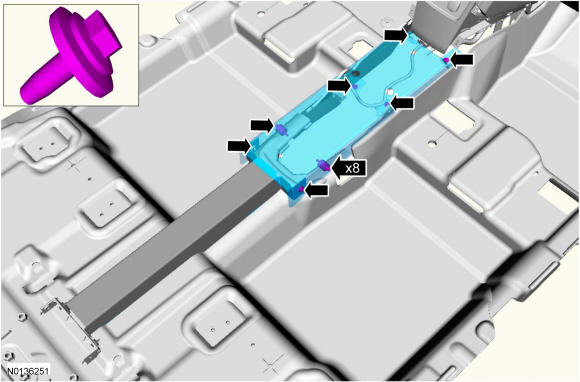

NOTE: Seats shown in illustration, removed for clarity.

Police vehicles only. Remove the 8 front console plate bolts and remove the front console plate.
1. 1.

  To install, tighten to 5.4 Nm (48 lb-in).

GFD37632

Courtesy of FORD MOTOR COMPANY
