Console - Rear, Floor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

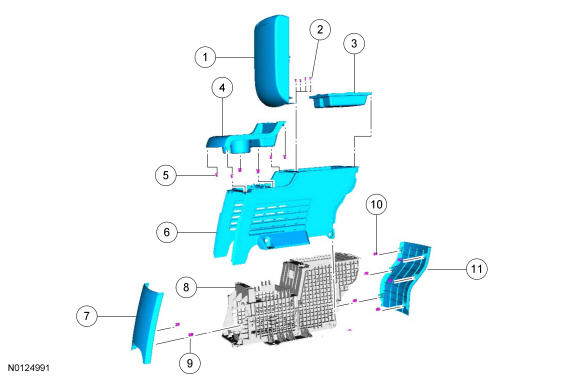

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 7806024 | Armrest |
| 2 | W706450 | Armrest screws (4 required) |
| 3 | 74115A00 | Storage tray |
| 4 | 7413562 | Upper finish panel |
| 5 | W710338 | Upper finish panel clips (6 required) |
| 6 | 74045C22 | Console finish panel |
| 7 | 7404567 | Front finish panel |
| 8 | 74045A90 | Console structure |
| 9 | W710338 | Front finish panel clips (2 required) |
| 10 | W710338 | Rear finish panel clips 6 required) |
| 11 | 74045E24 | Rear finish panel |

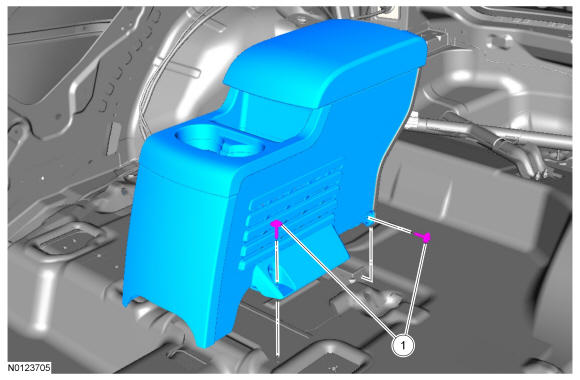

| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W707486 | Console floor bolts (4 required) | 7 Nm (62 lb-in) | - | - |
