Console - Rear, Floor: Removal

WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS

1.

Fold and tilt the second row passenger seats forward.

2.

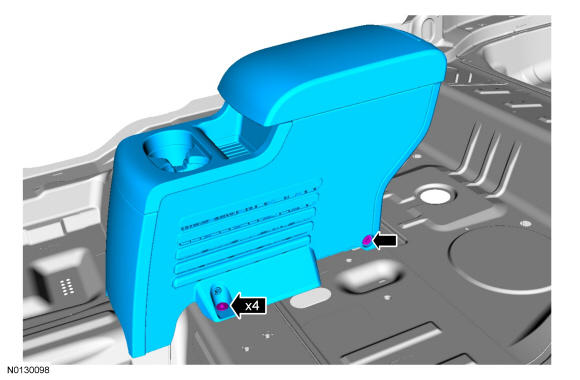

Remove the 4 rear floor console bolts.
1. 1.

  To install, tighten to 7 Nm (62 lb-in).

GFD37635

Courtesy of FORD MOTOR COMPANY

3.

Remove the rear floor console.

4.

Police vehicles only. Remove the 2nd row seat. REFER to Seating - 2nd Row .

5.

Police vehicles only. Remove the front console plate. Refer to Console - Front, Floor .

6.

NOTE: Seats shown removed for clarity.

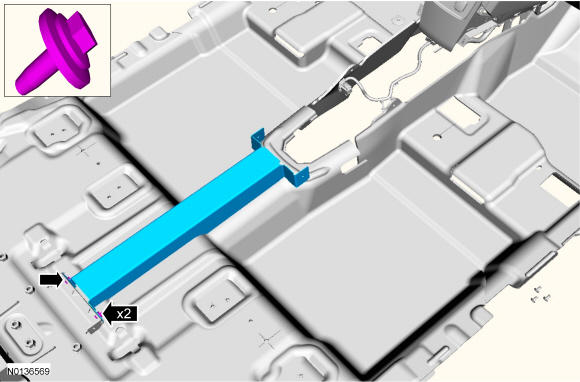

Police vehicles only. Remove the 2 rear console plate bolts and remove the rear console plate.
1. 1.

  To install, tighten to 5.4 Nm (48 lb-in).

GFD37636

Courtesy of FORD MOTOR COMPANY
