Glove Compartment: Removal

WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS

  1. 1.

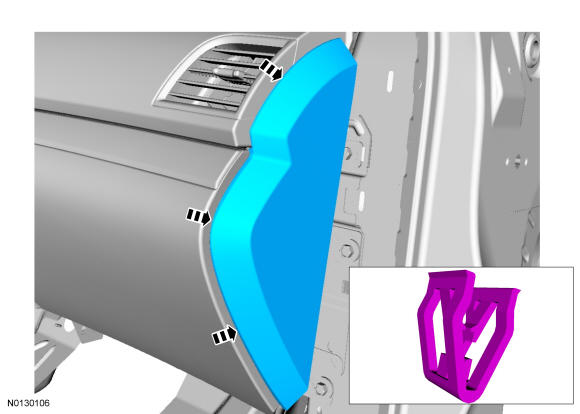

    Remove the RH instrument panel side trim panel.

    1. 1.

      Pull outward to release the 4 retaining clips.
GFD37638Courtesy of FORD MOTOR COMPANY

  1. 2.

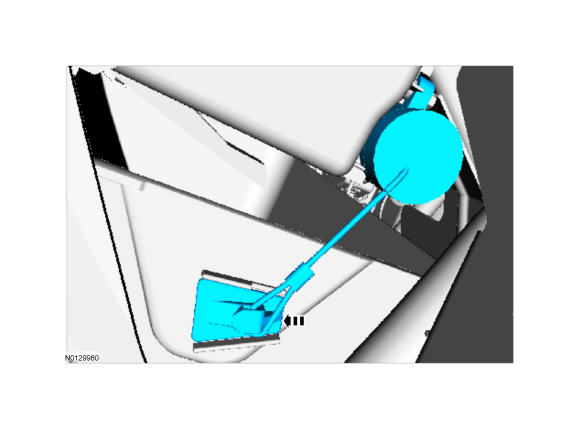

    Detach the glove compartment dampener string from the glove compartment bin.
GFD37639Courtesy of FORD MOTOR COMPANY

  1. 3.

    If equipped, remove the passenger side knee bolster air bag. PASSENGER KNEE AIRBAG .

  1. 4.

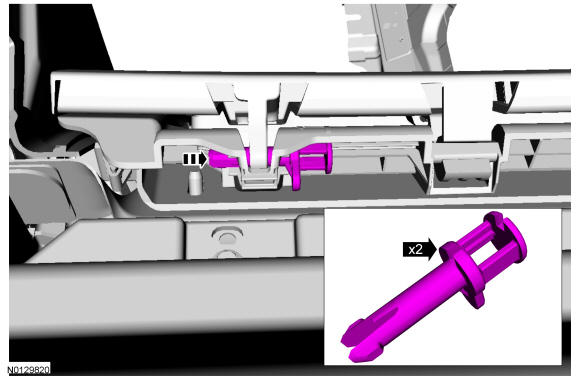

    NOTE: LH side shown in illustration, RH side similar.

    Remove the 2 glove compartment hinge pins.

GFD37640Courtesy of FORD MOTOR COMPANY

  1. 5.

    Open the glove compartment door, disengage the glove compartment down stops and remove the glove compartment door.
