Instrument Cluster Finish Panel: Removal

  1. 1.

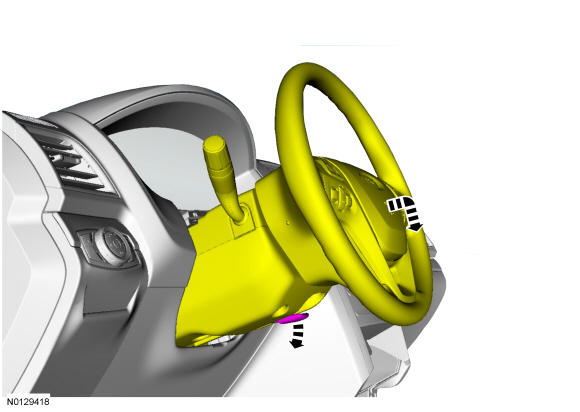

    Position the steering wheel to the full downward position and outward position.
GFD36978Courtesy of FORD MOTOR COMPANY

  1. 2.

    Unclip the gap hider from the upper steering column shroud.
GFD36979Courtesy of FORD MOTOR COMPANY

  1. 3.

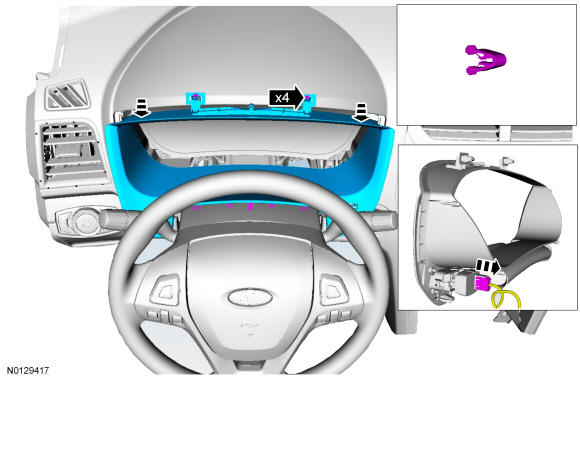

    Release the 4 clips and remove the IPC finish panel.

    1. 1.

      Disconnect the electrical connector.
GFD36980Courtesy of FORD MOTOR COMPANY
