Removal And Installation: Horn: Removal

1.

With the vehicle in NEUTRAL, position it on a hoist. REFER to REFER to Jacking and Lifting

2.

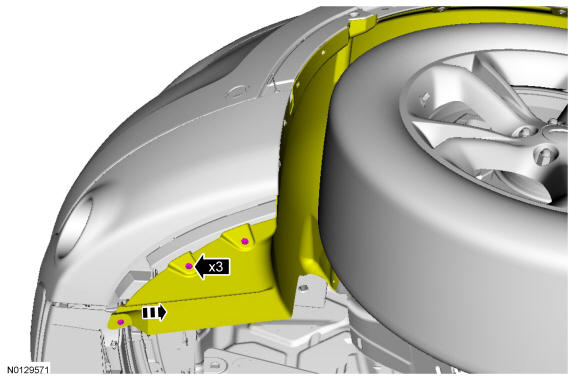

Remove the 3 screws from the LH lower splash shield and position aside.

GFD36988

Courtesy of FORD MOTOR COMPANY

NOTE: The horn and bracket are installed as an assembly.

3.
Remove the bolt and horn assembly.
1. 1.

  Disconnect the electrical connector.
1. 2.

  To install, tighten to 13 Nm (115 lb-in).
