Speaker - Door: Removal

1.

Remove the door trim panel. REFER to Interior Trim and Ornamentation - Door Trim Panel - Front or REFER to Interior Trim and Ornamentation - Door Trim Panel - Rear

2.

Remove the 4 screws (front door) or 3 screws (rear door) and the door speaker.
1. 1.

  Disconnect the electrical connector.
1. 2.

  To install, tighten to 2 Nm (18 lb-in).

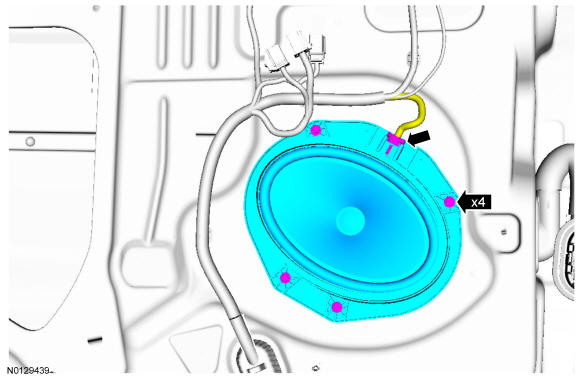

GFD37078

Courtesy of FORD MOTOR COMPANY
