Removal And Installation: Antenna: Removal

  1. 1.

    Remove the LH and RH D-pillar trim panel. REFER to Interior Trim and Ornamentation

  1. 2.

    Remove the LH and RH C-pillar trim panel. REFER to Interior Trim and Ornamentation - With Inflatable Safety Belts or REFER to Interior Trim and Ornamentation - Without Inflatable Safety Belts .

  1. 3.

    Carefully lower the rear of the headliner.

  1. 4.

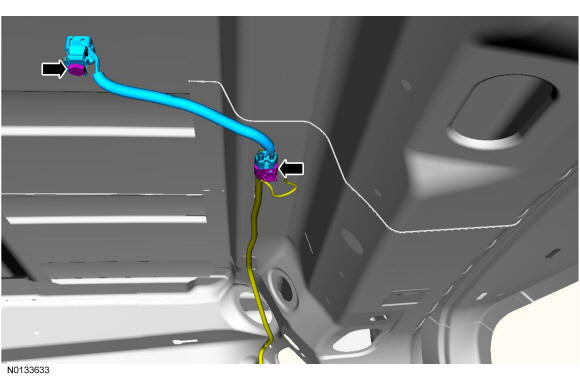

    Remove the AM/FM antenna with SDARS mounting bolt and disconnect the rear antenna cable connectors.

    1. 1.

      To install, tighten to 10 Nm (89 lb-in).
GFD37061Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the AM/FM antenna with SDARS.
