Audio Control Module (ACM): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

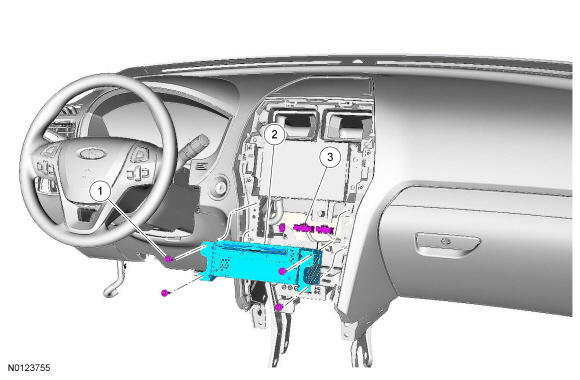

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W707628 | ACM screws (4 required) | - | - | 2 Nm (18 lb-in) |
| 2 | 18C869 | ACM | - | - | - |
| 3 | - | ACM electrical connectors (part of 14401) | - | - | - |
