Speaker - Subwoofer: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

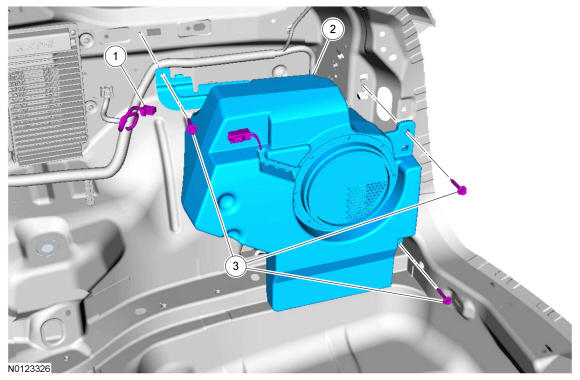

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Subwoofer speaker electrical connector (part of 14A005) | - | - | - |
| 2 | 18808 | Subwoofer speaker | - | - | - |
| 3 | W505425 | Subwoofer speaker bolts (3 required) | - | - | 10 Nm (89 lb-in) |
