Roof Rack: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

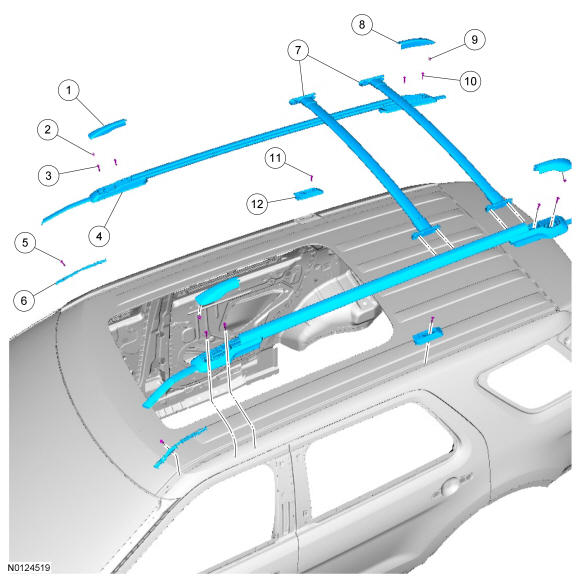

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 551A46 / 551A47 | Roof rack front cover (RH /LH) | - | - | - |
| 2 | - | Roof rack front cover clip (2 required part of 551A46 / 551A47) | - | - | - |
| 3 | W712668 | Roof rack front bolt (4 required) | 5 Nm (44 lb-in) | - | - |
| 4 | 55114 / 55115 | Roof rack rails (RH /LH) | - | - | - |
| 5 | W712668 | Roof rack moulding bolt (2 required) | 4 Nm (35 lb-in) | - | - |
| 6 | 50002 | Roof rack moulding (RH /LH) | - | - | - |
| 7 | 55106 / 55107 | Roof rack cross (front / rear) | - | - | - |
| 8 | 55182 / 55183 | Roof rack rear cover (RH /LH) | - | - | - |
| 9 | - | Roof rack rear cover clip (2 required part of 55182 / 55183) | - | - | - |
| 10 | W712668 | Roof rack rear bolt (4 required) | 5 Nm (44 lb-in) | - | - |
| 11 | W712668 | Roof rack middle bolt (2 required) | 5 Nm (44 lb-in) | - | - |
| 12 | 55140 / 55141 | Roof rack middle support (RH /LH) | - | - | - |
