D-Pillar Trim Panel: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

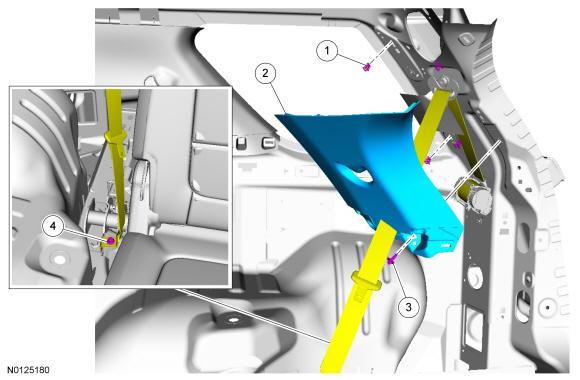

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W710338 | D-pillar trim panel clip (4 required) | - | - | - |
| 2 | 31010 / 31011 | D-pillar trim panel (Right Hand (RH) / LH) | - | - | - |
| 3 | W705132 | D-pillar trim panel bolt | 9 Nm (80 lb-in) | - | - |
| 4 | - | Third row safety belt anchor bolt (part of RH 611B68 or LH 611B69) | 40 Nm (30 lb-ft) | - | - |
