Camera Windshield Defrost Heater: Installation

    NOTE: Use an alcohol pad to remove the residual adhesive. If required, a plastic scraper may be used.

  1. 1.
GFD37347Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the protective covering from the new camera windshield defrost heater.

  1. 3.

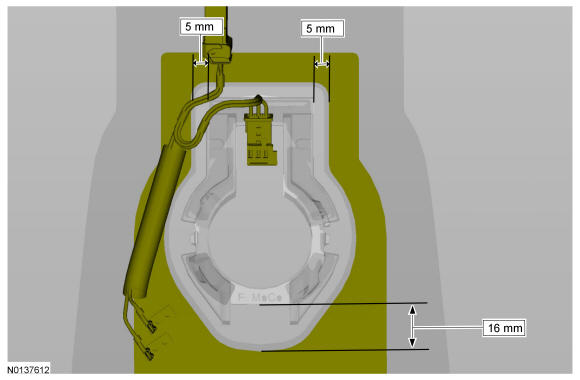

    Align the camera windshield defrost heater.
GFD37348Courtesy of FORD MOTOR COMPANY
    NOTE: Apply even pressure to adhere the camera windshield defrost heater to the windshield.

  1. 4.
GFD37346Courtesy of FORD MOTOR COMPANY

  1. 5.

    Install the rain sensor. REFER to Wipers and Washers .
