Exterior Mirror Motor: Removal

  1. 1.

    Remove the exterior mirror glass. Refer to Exterior Mirror Glass .

  1. 2.

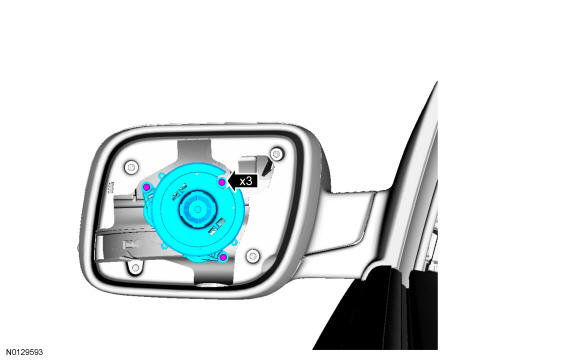

    Remove the 3 exterior mirror motor screws.
GFD37358Courtesy of FORD MOTOR COMPANY

  1. 3.

    Disconnect the exterior mirror motor electrical connectors.

  1. 4.

    Remove the exterior mirror motor.
