Removal And Installation
WARNING:
Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.
- 1.
Remove the seat. Refer to Seat .
- 5.
- 1.
From under the cushion side shield, push out from behind the seat control switch bezel to start detachment.
- 2.
-
NOTE: Do not pull out at the front of the seat control switch bezel, slide it rearward. Otherwise, seat control switch bezel retainers can break. - 1.
Installation
NOTE:
The front seat motor cable service part for the driver seat is different than the service part for passenger seat. Make sure to install the correct service part required for the seat.
- 2.

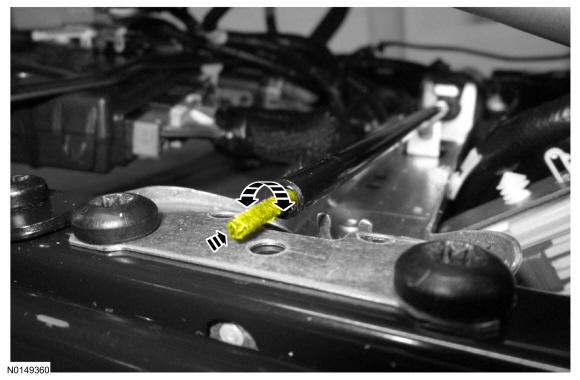

- Push the cable into the horizontal motor square drive twisting back and forth to engage the cable.
NOTE:

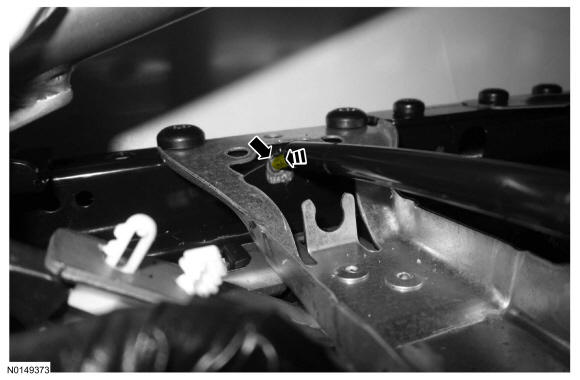

The cable felt covering should not be visible when the cable is correctly engaged to the horizontal motor square drive.
- 10.
Install the front seat. Refer to Seat .
