To Release an Inoperable Seat Latch

NOTE: RH seat shown, LH similar.

  1. 1.

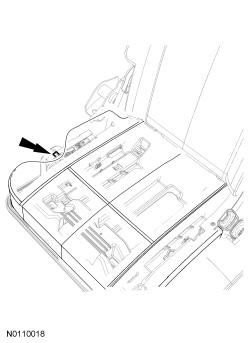

    Push the cushion cover and foam pad back and locate the power seat latch by-pass cut-out in the bracket.
GFD37570Courtesy of FORD MOTOR COMPANY

  1. 2.

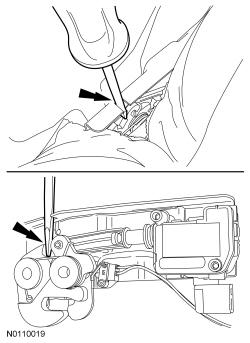

    Slide a screwdriver through the latch bracket until it bottoms out on the latch mechanism. Make sure the screwdriver is straight up and down and not on an angle or the screwdriver will not come in contact with the latch release lever.
GFD37571Courtesy of FORD MOTOR COMPANY

  1. 3.

    Pivot the screwdriver handle toward the front of the seat, releasing the latch.
GFD37572Courtesy of FORD MOTOR COMPANY
