Steering Column Control Module (SCCM): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

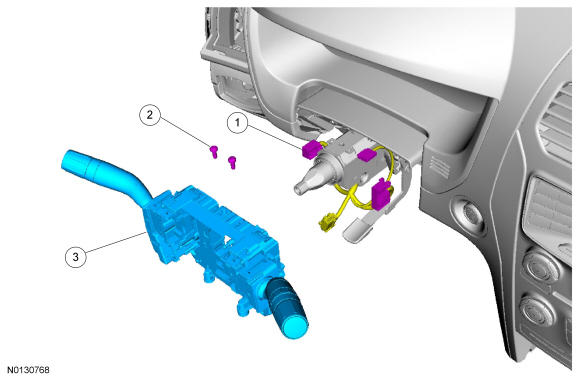

Exploded View
NOTE:
Vehicle without police package shown, vehicle with police package similar.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | Part of 14401 | SCCM electrical connectors | - | - | - |
| 2 | W504694 | SCCM screws (2 required) | - | - | 2 Nm (18 lb-in) |
| 3 | 3F791 | SCCM | - | - | - |
