Steering Column Multifunction Switch: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

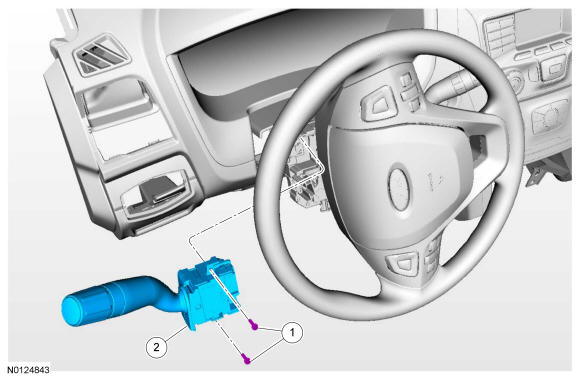

Exploded View
NOTE:
Vehicle without police package shown, vehicle with police package similar.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Multifunction switch screws (2 required) (part of 13341) | - | - | 3 Nm (27 lb-in) |
| 2 | 13341 | Multifunction switch (also part of 3F791) | - | - | - |
