Window Glass - Fixed, Rear Door: Removal
- 1.
Remove the rear door panel. REFER to Interior Trim and Ornamentation .
NOTE:
The door glass run and bracket are part of the rear window fixed glass assembly and cannot be serviced separately.
- 2.
Remove the rear door speaker. REFER to Information and Entertainment Systems Premium Plus .
- 4.

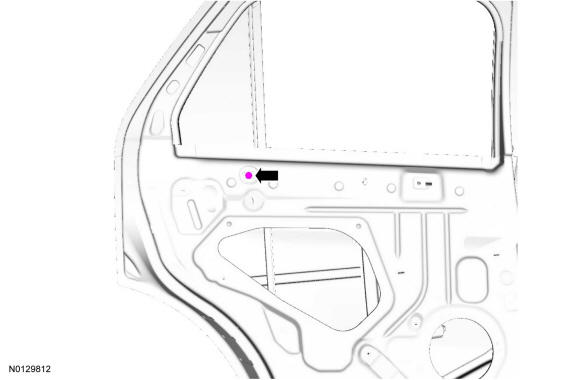

Install the window control switch and position the door window glass to access the glass-to-regulator clamp locking tab.
- 5.
Using a suitable tool, push the glass-to-regulator clamp locking tab inward then gently lift the glass upward slightly to release the glass from the regulator clamp.- To install, gently push glass down into the clamp until an audible click is heard, indicating the glass has seated correctly into the glass clamp.
- 6.
While holding the door glass, carefully lower the regulator to the full DOWN position and allow the door glass to rest loosely on top of the regulator.
- 7.
Loosen but do not remove the rear lower door window glass top run retainer bolt.- To install, tighten to 8 Nm (71 lb-in).
- 11.

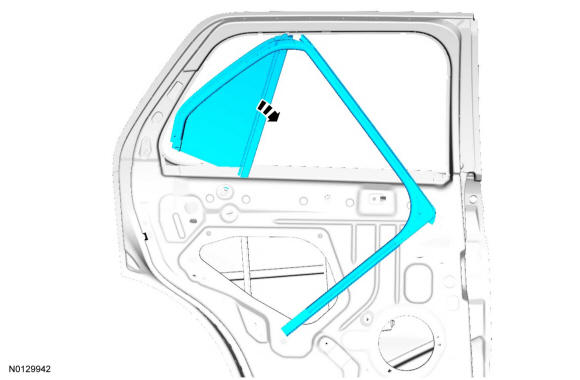

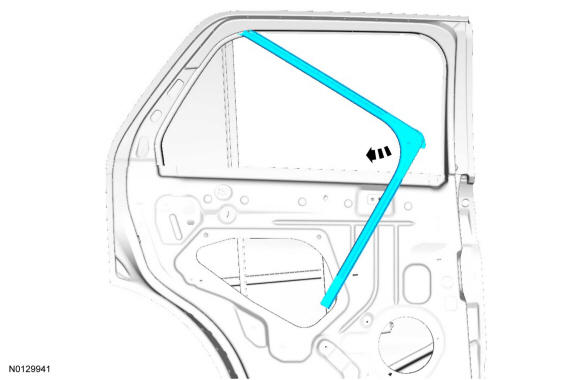

Remove the rear door fixed glass.- Tip the front of the fixed glass assembly down and pull the assembly out through the top inboard side of the door.
NOTE:
The door glass run and bracket are part of the rear window fixed glass assembly and cannot be serviced separately.
