Washer Pump: Removal

WARNING: Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call the Poison Control Center at: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTE: When installing a new washer pump, be careful not to damage the rubber grommet.

NOTE: To prevent spilling washer fluid, drain the washer reservoir before washer pump removal.

1.

Remove the RF fender splash shield. REFER to Front End Body Panels .

2.

NOTE: Front bumper removed for clarity.

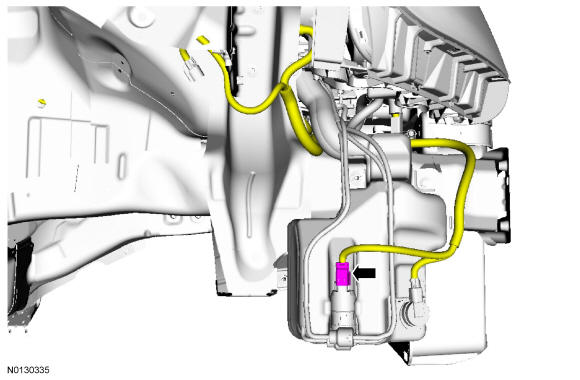

Disconnect the washer pump electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Front bumper removed for clarity.

Disconnect the washer hoses.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Front bumper removed for clarity.

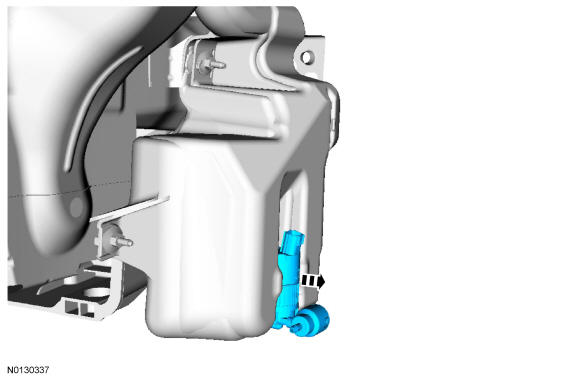

Remove the washer pump.

Courtesy of FORD MOTOR COMPANY
