Wiper and Washer Switch: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

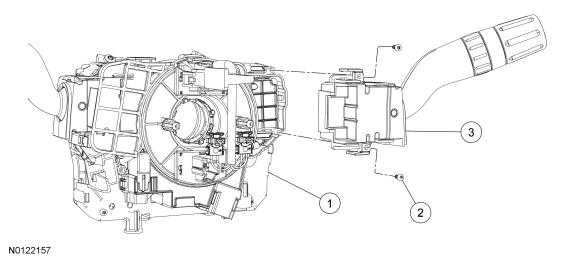

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 3F791 | SCCM | - | - | - |
| 2 | - | Wiper/washer switch screw (part of 17A533) (2 required) | - | - | - |
| 3 | 17A553 | Wiper/washer switch | - | - | - |
