Liftgate Lock Cylinder: Removal

WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS

  1. 1.

    Remove the latch. Refer to Liftgate Latch - Power .

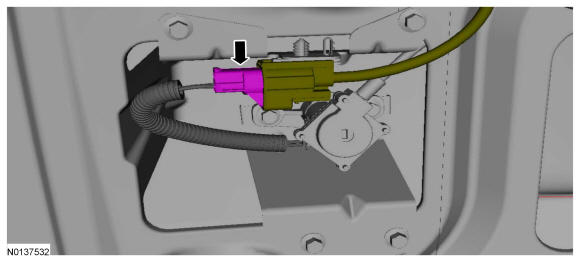

  1. 2.

GFD37708Courtesy of FORD MOTOR COMPANY

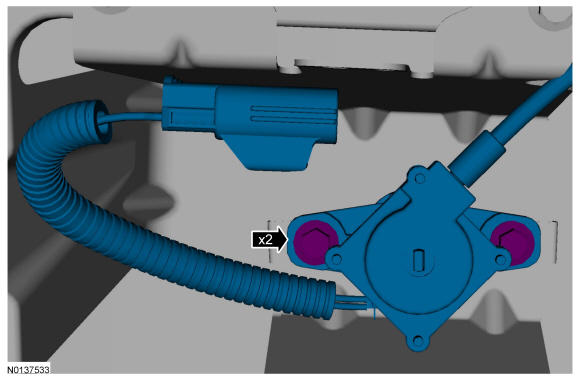

  1. 3.

    • To install, tighten to 7 Nm (62 lb-in).
GFD37709Courtesy of FORD MOTOR COMPANY
