Exterior Door Handle: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

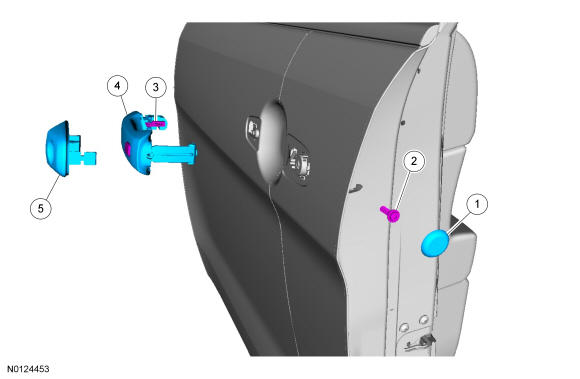

Exploded View
NOTE:
Front exterior door handle With Intelligent Access shown, front exterior door handle without Intelligent Access (IA) and rear exterior door handles similar.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W714032 | Exterior door handle screw cover | - | - | - |
| 2 | - | Exterior door handle screw (part of 26684 RH 26685 LH) | - | - | - |
| 3 | - | Exterior door handle electrical connector (part of 22404) (vehicles equipped With Intelligent Access) | - | - | - |
| 4 | 22404 | Exterior door handle | - | - | - |
| 5 | 218A14 | Exterior door handle bezel | - | - | - |
