Rear Door Handles, Locks and Latches - Exploded View
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

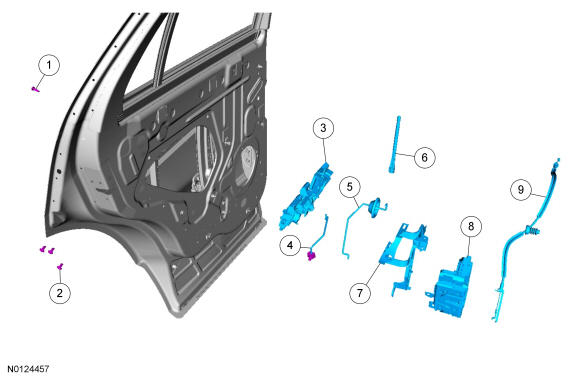

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Exterior rear door handle reinforcement screw (part of 26684 RH 26685 LH) | - | - | 7 Nm (62 lb-in) |
| 2 | W705830 | Rear door latch screw (3 required) | - | - | 12 Nm (106 lb-in) |
| 3 | 26684 RH 26685 LH | Exterior rear door handle reinforcement | - | - | - |
| 4 | 26596 RH 26597 LH | Exterior rear door handle actuating rod | - | - | - |
| 5 | 26460 RH 26461 LH | Rear door lock actuating rod | - | - | - |
| 6 | 21850 | Rear door lock push rod | - | - | - |
| 7 | 264C28 RH 264C29 LH | Exterior rear door handle reinforcement carrier | - | - | - |
| 8 | 26412 RH / 26413 LH | Rear door latch | - | - | - |
| 9 | 265B10 | Interior rear door handle actuating cable | - | - | - |
