Door - Rear: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

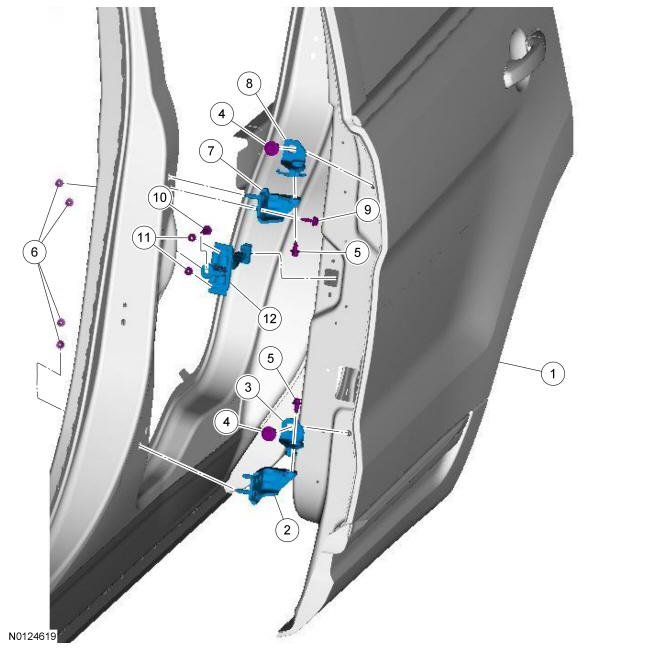

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 7824630 RH /7824631 LH | Rear door assembly | - | - | - |
| 2 | 782680 RH /7826801 LH | Lower door hinge assembly | - | - | - |
| 3 | - | Lower door hinge (part of 7826800/7826801 | - | - | - |
| 4 | W505444 | Door hinge-to-door bolt | 55 Nm (41 lb-ft) | - | - |
| 5 | W715134 | Door hinge pivot bolt | 30 Nm (22 lb-ft) | - | - |
| 6 | W709361 | Door hinge-to-B-pillar nut | 30 Nm (22 lb-ft) | - | - |
| 7 | 7824630 RH /7824631 LH | Upper door hinge assembly | - | - | - |
| 8 | - | Upper door hinge (part of 7826800/7826801 | - | - | - |
| 9 | W705201 | Upper door hinge-to-B-pillar bolt | 55 Nm (41 lb-ft) | - | - |
| 10 | W713778 | Door check-to-B-pillar bolt | 25 Nm (18 lb-ft) | - | - |
| 11 | W520111 | Door check-to-door nut | 12 Nm (106 lb-in) | - | - |
| 12 | 7827204 | Door check assembly | - | - | - |
