Door - Rear: Removal

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in SERVICE INFORMATION .

  1. 1.

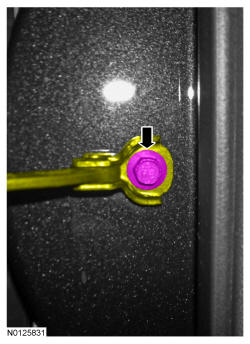

    Remove the door check bolt at the B-pillar and position aside the door check arm.
GFD37250Courtesy of FORD MOTOR COMPANY

  1. 2.

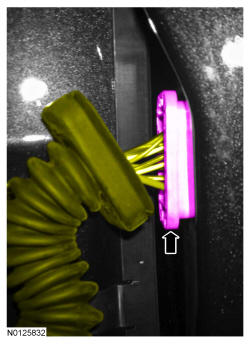

    Disconnect the door wiring harness electrical connector.
GFD37251Courtesy of FORD MOTOR COMPANY

  1. 3.

    Support the door from the bottom.
    NOTE: To minimize the possibility of binding, remove the lower door hinge pivot bolt first.

  1. 4.

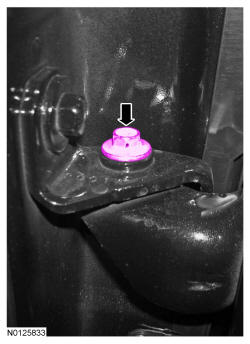

    Remove the lower door hinge pivot bolt.
GFD37252Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the upper door hinge pivot bolt.
GFD37253Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove the door.
