NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

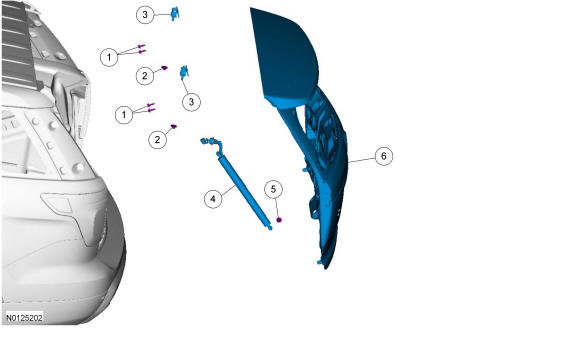

Exploded View

GFD37254Courtesy of FORD MOTOR COMPANY
Item Service Part Number Description Tool Number Material Name Notes
1 N806738 Liftgate hinge bolt - - 30 Nm (22 lb-ft)
2 W710675 Liftgate hinge nut - - 55 Nm (41 lb-ft)
3 7842900 Liftgate hinge - - -
4 14B351 Power liftgate strut and motor - - -
4 78406A10-A RH /78406A11-A LH Manual liftgate strut - - -
5 W710571 Liftgate strut stud (2 required each side with manual liftgate) - - 55 Nm (41 lb-ft)
5 W710571 Liftgate-to-body strut stud (2 required with power liftgate) - - 55 Nm (41 lb-ft)
5 W715125 Body-to-liftgate strut stud (2 required with power liftgate) - - 40 Nm (30 lb-ft)
6 7840400 Liftgate assembly - - -
