Removal And Installation: Liftgate: Removal

1. 1.

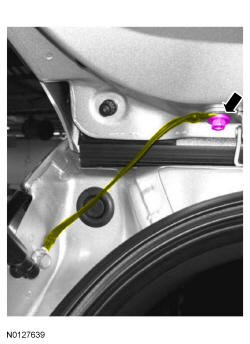

   Remove the bolt at the liftgate and position the ground strap aside.

Courtesy of FORD MOTOR COMPANY

1. 2.

   Position aside the liftgate opening weatherstrip.

1. 3.

   Remove the liftgate trim panel. REFER to Interior Trim and Ornamentation .

1. 4.

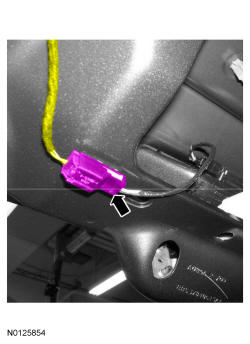

   Disconnect the center high-mount stop lamp electrical connector.

Courtesy of FORD MOTOR COMPANY

NOTE: LH side shown, RH side similar.
1. 5.

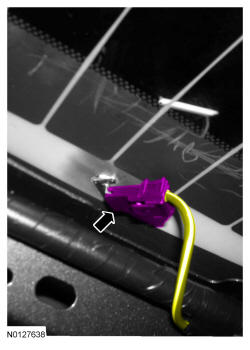

   Disconnect the heated backlight electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Disconnect the rear wiper motor electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Disconnect the license lamp electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Disconnect the liftgate latch electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 9.



Courtesy of FORD MOTOR COMPANY

1. 10.

   Remove the wiring harness pushpin retainers.

1. 11.

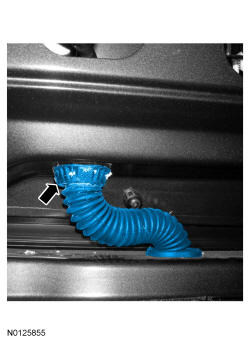

   Remove the wiring harness boot at the liftgate opening and route the wiring harness out of the liftgate.

Courtesy of FORD MOTOR COMPANY

1. 12.

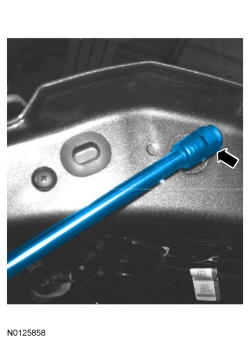

   Remove the rear washer hose boot at the body and disconnect the washer hose.

Courtesy of FORD MOTOR COMPANY

NOTE: LH side shown, RH side similar.
1. 13.

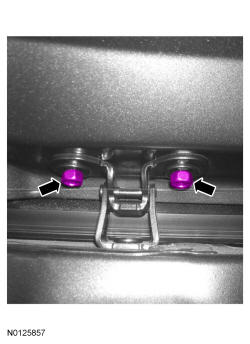

   Loosen but do not remove the liftgate-to-hinge bolts.

Courtesy of FORD MOTOR COMPANY

1. 14.

   Manually support the liftgate.

NOTE: LH side shown, RH side similar.
1. 15.
   Disconnect the liftgate supports at the liftgate.

Courtesy of FORD MOTOR COMPANY

1. 16.

   With the help of an assistant, remove the liftgate-to-hinge bolts and remove the liftgate.
