Liftgate/Trunk Module (LTM): Installation

  1. 1.

    Install the LTM in the vehicle and secure the upper and lower retaining clips.

  1. 2.

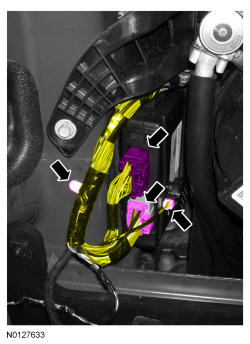

    Connect the LTM electrical connectors and install the pin-type retainer.
GFD37268Courtesy of FORD MOTOR COMPANY

  1. 3.

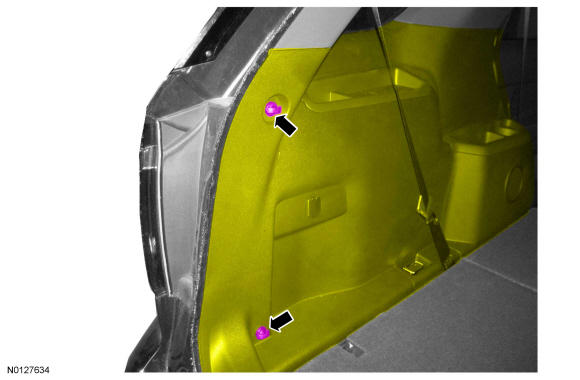

    Install the LH quarter trim panel and the 2 cargo net anchors.
GFD37269Courtesy of FORD MOTOR COMPANY

  1. 4.

    Install the liftgate opening tread plate.

  1. 5.

    Install the liftgate opening weatherstrip.

  1. 6.

    Install the LH rear door tread plate.

  1. 7.

    Initialize the LTM. Refer to Power Liftgate Initialization
