Pinch Strip Switch: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

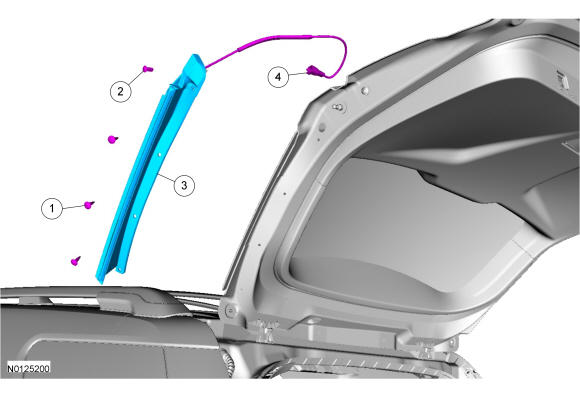

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Pushpin (part of 78406A76/78406A77 | - | - | - |
| 2 | W706350 | Rivet (3 required each side) | - | - | - |
| 3 | 78406A76 RH /78406A77 LH | Pinch strip switch | - | - | - |
| 4 | - | Electrical connector (part of 78406A76/78406A77 | - | - | - |
